0080P1-2-055
2 Output Toroidal Transformer, 80VA, 110 V, 55 V
廠商型號:
0080P1-2-055
芯天下內部編號:
4827-0080P1-2-055
生產廠商:
Nuvotem Talema
描述:
2 Output Toroidal Transformer, 80VA, 110 V, 55 V
產品類別:
Power Supplies & Transformers|Transformers|Toroidal Transformers
客戶編號:

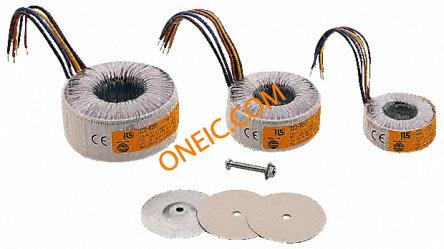

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Diameter | 93mm |
| Dimensions | 93 Dia. x 38mm |
| Height | 38mm |
| Isolation Voltage | 4.5kV ac |
| Maximum Operating Frequency | 450Hz |
| Maximum Temperature | +120°C |
| Minimum Temperature | 0°C |
| Number of Outputs | 2 |
| Power Rating | 80VA |
| Primary Voltage Rating | 230V |
| Secondary Current | 0.73A |
| Secondary Voltage Rating | 110 V, 55 V |
| Weight | 0.9kg |
| 輸出數目 | 2 |
| 最高溫度 | +120°C |
| 初級額定電壓 | 230V 交流 |
| 次級額定電壓 | 2 x 55V 交流 |
| 重量 | 0.9kg |
| 額定功率 | 80VA |
| 高度 | 38mm |
| 次級電流 | 0.73A |
| 隔離電壓 | 4.5kV ac |
| 尺寸 | 93 Dia. x 38mm |
| 終端類型 | 銅導線端接電線 |
| 最低溫度 | 0°C |
| 直徑 | 93mm |
| 最大工作頻率 | 450Hz |
