0253.250M
Fuses 125V 3A FM10A Mil
廠商型號:
0253.250M
芯天下內部編號:
206-0253-250M
生產廠商:
Littelfuse
描述:
Fuses 125V 3A FM10A Mil
產品類別:
Circuit Protection|Fuses & Fuse Holders|Fuses

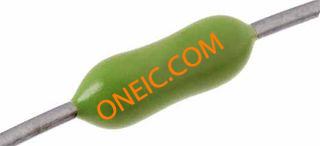

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Fuses |
| RoHS | In Transition |
| Product | Specialty Fuses |
| Product Type | PCB Mount Fuse |
| Body Style | Leaded Fuses |
| Current Rating | 250 mA |
| Voltage Rating AC | 125 V |
| Voltage Rating DC | 125 V |
| Fuse Type | Fast Blow |
| Fuse Size / Group | PICO II |
| Dimensions | 7.11 mm L x 2.8 mm D |
| Mounting Style | Through Hole |
| Termination Style | Axial |
| Series | 253 |
| Body Material | Epoxy Coated Cement |
| Case Diameter | 2.8 mm |
| Case Length | 7.11 mm |
| Indicator Style | Without Indicator |
| Interrupt Rating | 50 Amps at 125 VoltsAC / 300 Amps at 125 VoltsDC |
| Operating Temperature Range | - 55 C to + 125 C |
| Packaging | Bulk |
| Resistance | 0.665 Ohms |
| Factory Pack Quantity | 1000 |
| Type | PCB Mount Fuse |
| Voltage Rating | 125 V |
| Product Length | 7.11 |
| EU RoHS | Not Compliant |
| Maximum Operating Temperature | 125 |
| Product Diameter | 2.61(Max) |
| Mounting | Through Hole |
| Number of Terminals | 2 |
| Maximum AC Voltage Rating | 125 |
| Fuse Material | Ceramic |
| Acting | Very Fast |
| Current Rating | 0.25 |
| Minimum Operating Temperature | -55 |
| Unit Pack | 0 |
| MOQ | 1 |
| Breaking Capacity @ Rated Voltage | 50A AC, 300A DC |
| Mounting Type | Through Hole |
| Voltage Rating - AC | 125V |
| Approvals | CSA, QPL, UL |
| Size / Dimension | 0.103" Dia x 0.280" L (2.61mm x 7.11mm) |
| Operating Temperature | -55°C ~ 125°C |
| Standard Package | 1,000 |
| Voltage Rating - DC | 125V |
| Response Time | Fast |
| DC Cold Resistance | 0.665 Ohm |
| Melting I2t | 0.0116 |
| Package/Case | Axial |
| rohs | Contains lead / RoHS non-compliant |
| Voltage Rating VAC | :125V |
| Voltage Rating VDC | :125V |
| Fuse Current | :250mA |
| Breaking Capacity | :50A @ 125VAC / 300A @ 125VDC |
| Blow Characteristic | :Very Fast Acting |
| Fuse Case Style | :Axial Leaded |
| Weight (kg) | 0 |
| Tariff No. | 85361010 |
