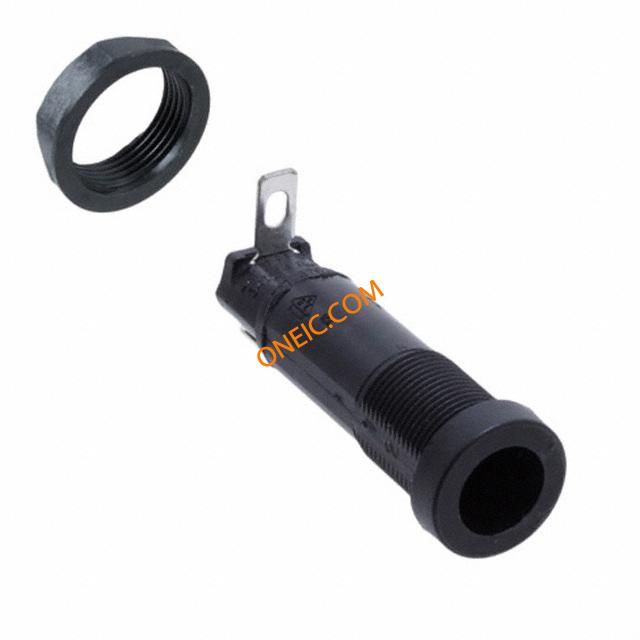

03453LF1ZX010
Fuse Holders Shock Safe 3AG Low Profile
廠商型號:
03453LF1ZX010
芯天下內部編號:
206-03453LF1ZX010
生產廠商:
Littelfuse
描述:
Fuse Holders Shock Safe 3AG Low Profile
產品類別:
Circuit Protection|Fuses & Fuse Holders|Fuse Holders
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 20 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 345 |
| Mounting Style | Panel |
| Shaft Type | Bayonet Knob Release |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| EU RoHS | Compliant |
| Unit Pack | 0 |
| MOQ | 1 |
| Voltage | 250V |
| Mounting Type | Panel Mount |
| Fuseholder Type | Holder |
| Fuse Size | 1/4" Dia x 1-1/4" L (6.35mm x 31.8mm) |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 3AG |
| Standard Package | 100 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating V DC | :250V |
| Voltage Rating V AC | :250V |
| Fuse Current | :20A |
| Fuse Holder Type | :Enclosed Bayonet Style |
| Holder Terminals | :Quick Connect / Solder |
| No. of Fuses | :1 |
| Fuse Size Held | :1/4" x 1-1/4", 6.3mm x 32mm, 3AB, 3AG, 0 |
| Fuse Size Metric | :6.3mm x 32mm |
| Fuse Size Imperial | :1/4" x 1-1/4" |
| SVHC | :No SVHC (20-Jun-2013) |
| Approval Category | :CSA and VDE Approved, UL Recognised |
| Body Length | :40.39mm |
| External Depth | :15.24mm |
| Fuse Size Code | :3AG |
| Operating Temperature Max | :85°C |
| Operating Temperature Min | :-40°C |
| Terminal Type | :Quick Connect |
| Termination Type | :Solder |
| Weight (kg) | 0.001 |
| Tariff No. | 85369010 |
| Brand/Series | 345Series |
| CurrentRating | 20A(UL,CSA)/10A(VDE) |
| Dimensions | 2in.Lx0.60in.Dia. |
| ForUseWith | 3AGFuse |
| Material | GlassFilledThermoplastic |
| Material,Body | Glass-filledThermoplastic |
| Material,Contact | TinPlatedBrass |
| MountingStyle | PanelMount |
| Standards | ULRecognized/CSACertified/VDEApproved |
| TerminalType | Solder |
| VoltageRating | 250V |
| Voltage,Rating | 250V |
