03455LF1H

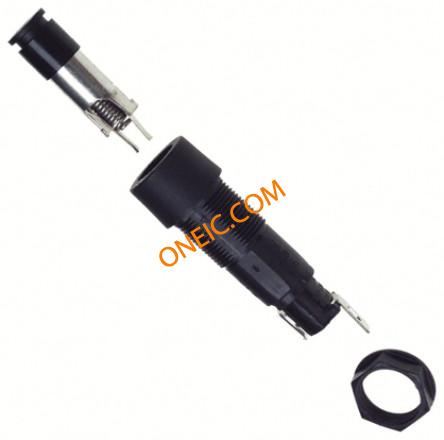

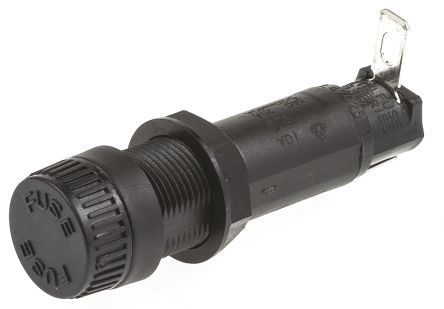

Fuse Holders Shock Safe 5x20mm
廠商型號:
03455LF1H
芯天下內部編號:
206-03455LF1H
生產廠商:
Littelfuse
描述:
Fuse Holders Shock Safe 5x20mm
產品類別:
Circuit Protection|Fuses & Fuse Holders|Fuse Holders
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Fuse Holders |
| RoHS | RoHS Compliant |
| Product | Fuse Holders |
| Current Rating | 10 A |
| Voltage Rating | 250 V |
| Number of Poles | 1 |
| Series | 345 |
| Mounting Style | Panel |
| Shaft Type | Bayonet Knob Release |
| Operating Temperature Range | - 40 C to + 85 C |
| Color | Black |
| Illumination | No |
| Packaging | Bulk |
| Factory Pack Quantity | 100 |
| Unit Pack | 0 |
| MOQ | 1 |
| Voltage | 250V |
| Mounting Type | Panel Mount |
| Fuseholder Type | Holder |
| Fuse Size | 5mm x 20mm |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Contact Finish | Tin |
| Fuse Type | Cartridge |
| For Use With/Related Products | 5mm x 20mm |
| Standard Package | 100 |
| Number of Circuits | 1 |
| Contact Material | Copper Alloy |
| rohs | Lead free / RoHS Compliant |
| Body Material | Fibreglass Reinforced Thermoplastic |
| Cap Style | Slotted |
| Voltage Rating VDC | :250V |
| Voltage Rating VAC | :250V |
| Fuse Current | :10A |
| Fuse Holder Type | :Cartridge Fuse Holder |
| Holder Terminals | :Quick Connect |
| No. of Fuses | :1 |
| Fuse Size Held | :5mm x 20mm |
| Weight (kg) | 0.005 |
| Tariff No. | 85361010 |
| Brand/Series | 345Series |
| CurrentRating | 10A(Max.) |
| Dimensions | 5x20mm |
| ForUseWith | 2AGand3AG |
| Material,Body | Glass-filledThermoplastic |
| Material,Contact | TinPlatedBrass |
| MountingStyle | PanelMount |
| Standards | ULListed/CSACertified/VDEApproved |
| TerminalType | Knob |
| VoltageRating | 250V |
| Voltage,Rating | 250VAC(Max.) |
| Rated voltage | 250V |
| Fuses application | tube fuses |
| Maximum current | 10A |
| Mounting | on panel |
| Fuse size | 5x20mm |
| Gross weight | 9.54 g |
| Operating temperature | -40...85°C |
| Multiplicity | 1 |
| Fuse accessories type | fuse holder |
| Collective package [pcs] | 100 |
| spg | 100 |
