0600-0-05-15-00-00-01-0
Circuit Board Hardware - PCB 10u AU OVER NI
廠商型號:
0600-0-05-15-00-00-01-0
芯天下內部編號:
258-0600-0-05-15-00-00-01-0
生產廠商:
Mill-Max
描述:
Circuit Board Hardware - PCB 10u AU OVER NI
產品類別:
Electromechanical|Hardware|Circuit Board Hardware - PCB

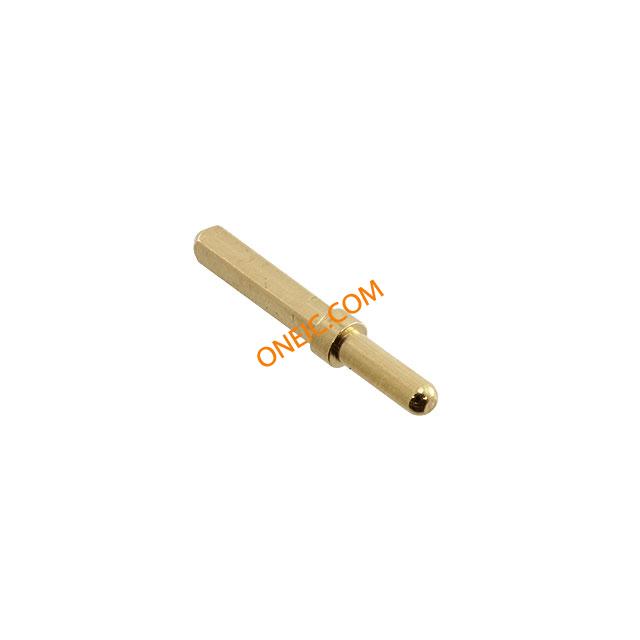

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Circuit Board Hardware - PCB |
| RoHS | RoHS Compliant |
| Packaging | Bulk |
| Product Length | 11.18 |
| EU RoHS | Compliant |
| Product Depth | 1.78 |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Connector Type | Connector Headers and PCB Recepta... |
| Gender | PIN |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Contact Type | Signal |
| Contact Material | Brass Alloy |
| Length - Overall | 0.440" (11.18mm) |
| Flange Diameter | 0.070" (1.77mm) |
| Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.052" (1.32mm) |
| Contact Finish | Gold |
| Pin Size - Below Board | 0.047" (1.19mm) Square |
| Pin Size - Above Board | 0.048" (1.22mm) Dia |
| Standard Package | 500 |
| Insulation | Non-Insulated |
| Termination | Solder |
| Contact Finish Thickness | 10μin (0.25μm) |
| Terminal Type | Double End |
| rohs | Lead free / RoHS Compliant |
| Product | Pins |
| Material | Brass Alloy |
| Plating | Gold over Nickel |
| Length | 11.18 mm |
| Outside Diameter | 1.78 mm |
| Type | Solder Mount |
