09140009966

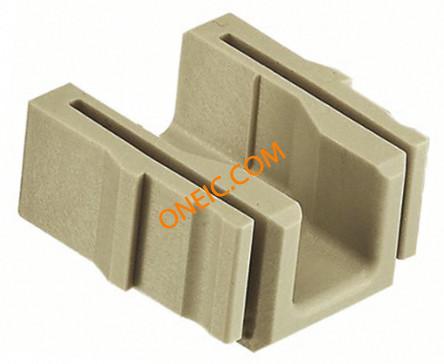

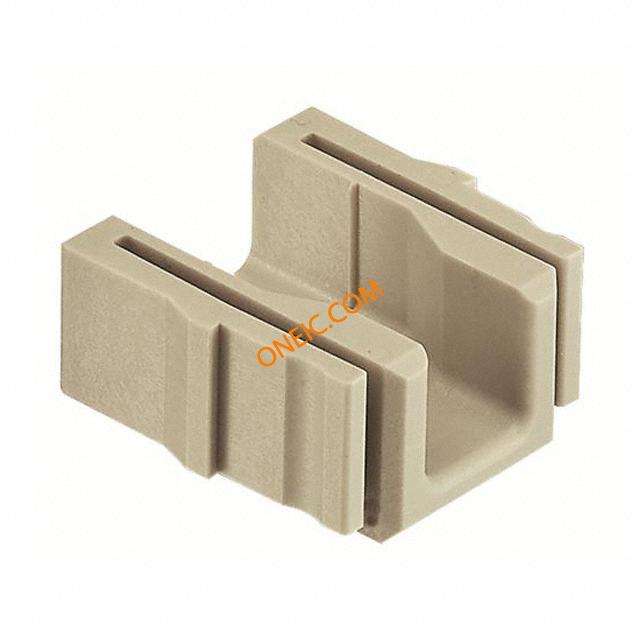

Connector Accessories Adapter for RJ-45 Patch Cable
廠商型號:
09140009966
芯天下內部編號:
479-09140009966
生產廠商:
Harting Technology Group
描述:
Connector Accessories Adapter for RJ-45 Patch Cable
產品類別:
Connectors|Network & Telecom Connectors|RJ Adapters, Couplers & Extensions
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Depth | 13 |
| Product Length | 25.7 |
| EU RoHS | Compliant |
| Type | Adapter |
| Product Height | 25.3 |
| Accessory Type | Adapter |
| For Use With/Related Products | Patch Cable |
| Standard Package | 1 |
| rohs | Lead free / RoHS Compliant |
| Depth | 13mm |
| Interface Type | RJ45 |
| LAN Category | Cat5e |
| Length | 25.3mm |
| Number of Ports | 8 |
| Width | 31.2mm |
| Wiring Configuration | Straight Through |
| Product | Accessories |
| Flammability Rating | UL 94 V-0 |
| Current Rating | 1 A |
| USOC Codes | RJ45 |
| Voltage Rating | 50 V |
| Color | Gray |
| Gender | Male |
| Performance Category | Cat 5e |
| Operating Temperature Range | - 40 C to + 85 C |
| Housing Material | Polycarbonate (PC) |
| Number of Positions / Contacts | 8 |
| Series | Han |
| Part # Aliases | 000 09 09-14-000-9966 14 9966 |
| RoHS | RoHS Compliant |
| Connector | module |
| Mechanical durability | 500cycles |
| Rated current | 1A |
| Multiplicity | 1 |
| Width in modules | 1 |
| Connector type | male |
| Spatial orientation | straight |
| Gross weight | 6.13 g |
| Operating temperature | -40...85°C |
| Connector series | Han Modular RJ45 |
| Rated voltage | 50V |
| Connectors application | RJ45 cable installation |
| Collective package [pcs] | 4 |
| Enclosure material | polycarbonate |
| spg | 4 |
| 系列 | Han-Modular? RJ45 |
| 配件類型 | Adapter |
| 端口數目 | 8 |
| 區域網路類別 | Cat5e |
| 接口類型 | RJ45 |
| 寬度 | 31.2mm |
| 深度 | 13mm |
| 類型 | 適配器 |
| 長度 | 25.3mm |
| 線路配置 | 直通 |
