1-776180-1

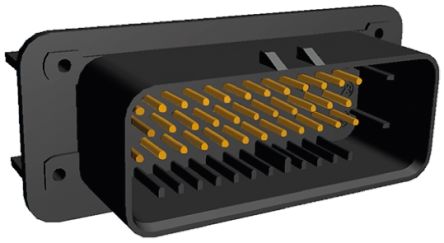

Conn Power PL 35 POS 4mm Solder RA Thru-Hole
廠商型號:
1-776180-1
芯天下內部編號:
35-1-776180-1
生產廠商:
te connectivity / amp
描述:
Conn Power PL 35 POS 4mm Solder RA Thru-Hole
產品類別:
Interconnect|Connector Power
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Power |
| Gender | PL |
| Number of Contacts | 35 |
| Pitch | 4 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Right Angle |
| Standard Package | Bulk |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not reviewed for lead free solder process |
| Mount Angle | Right Angle |
| Color | Black |
| Gasket | Without |
| Housing Material | Thermoplastic |
| Terminate To | Panel, Printed Circuit Board |
| Contact Mating Area Plating Material | Gold |
| Housing Flammability Rating | UL 94V-0 |
| Product Type | Header Assembly |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 35 |
| Contact Material | Brass |
| Subcategory | Connector Power |
| Lead Time | 35 Days |
| Mounting Type | Panel Mount; Through Hole, Right Angle |
| Connector Type | Header, Shrouded |
| Contact Finish | Gold-Palladium |
| Packaging | Bulk |
| Number of Rows | 3 |
| Fastening Type | Locking Ramp |
| Contact Type | Male Pin |
| Termination | Solder |
| Row Spacing | 0.157" (4.00mm) |
| Number of Positions Loaded | All |
| rohs | Lead free / RoHS Compliant |
| Colour | Black |
| Contact Plating | Gold |
| Depth | 37.9mm |
| Height | 32.1mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -40°C |
| Width | 76.9mm |
| Factory Pack Quantity | 1 |
| Product Category | Automotive Connectors |
| RoHS | RoHS Compliant |
| 連接器類型 | Header, Shrouded |
| 間距 | 0.157" (4.00mm) |
| 排數 | 3 |
| 位置數 | 35 |
| 排距 | 0.157" (4.00mm) |
| 端接 | Solder |
| 加載的針腳數 | All |
| 緊固類型 | Locking Ramp |
| 觸頭鍍層 | Gold-Palladium |
| 裝配類型 | Panel Mount; Through Hole, Right Angle |
| 接觸點類型 | Male Pin |
| 顏色 | Black |
| 系列 | AMPSEAL, AMP |
| 觸點數目 | 35 |
| 最高工作溫度 | +125°C |
| 高度 | 32.1mm |
| 安裝類型 | 面板安裝 |
| 觸點材料 | 黃銅 |
| 類型 | PCB Connector |
| 端接方法 | 焊接 |
| 寬度 | 76.9mm |
| 外殼材料 | 玻璃纖維增強聚碳酸酯 (PBT) |
| 最低工作溫度 | -40°C |
| 行數 | 3 |
| 深度 | 37.9mm |
| 觸點電鍍 | 金 |
| 取り付け穴 | 帶有 |
| Centerline (Pitch) | 4?mm?[?.157?in?] |
| 工作溫度（最大值）?(°C) | 100, 105, 110, 120, 125, 65, 70, 75, 80, 85, 90 |
| Circuit Application | Power |
| 公稱電圧アーキテクチャ?(V) | 12, 24, 42, 48, 240 |
| 信號針數量 | 35 |
| PCB 安裝固定類型 | 板鎖 |
| 屏蔽 | 否 |
| 連接器和端子端接到 | 印刷電路板 |
| 定格電圧 (最大)?(VAC) | 250 |
| 長度 | 76.9?mm?[?3.0275?in?] |
| UL 易燃性等級 | UL 94V-0 |
| 接觸面電鍍 | 金 (Au) |
| 保護等級 | IP6K9K |
| 工作電壓?(VAC) | 250 |
| PCB からのプロファイル高さ | 23.6?mm?[?.929?in?] |
| 鎖定接口 | 帶有 |
| 工組溫度范圍 | -40 – 125?°C?[?-40 – 257?°F?] |
| Sealable | 是 |
| PCB 安裝固定 | 帶有 |
| 面板安裝固定 | 不帶 |
| 工作溫度（最大值）?(°F) | 149, 158, 167, 176, 185, 194, 212, 221, 230, 248, 257 |
| セクション數 | 1 |
| PCB マウント アラインメント | 帶有 |
| 封裝數量 | 220 |
| 混合頭 | 否 |
| PCB 厚度（建議） | 1.57?mm?[?0.062?in?] |
| 安裝方向 | 水平/90° |
| 插針直徑 | 1.3?mm?[?.051?in?] |
