1-84981-5
Conn FFC Connector SKT 15 POS 1mm Solder RA SMD T/R
廠商型號:
1-84981-5
芯天下內部編號:
35-1-84981-5
生產廠商:
te connectivity / amp
描述:
Conn FFC Connector SKT 15 POS 1mm Solder RA SMD T/R
產品類別:
Interconnect|Connector FFC-FPC

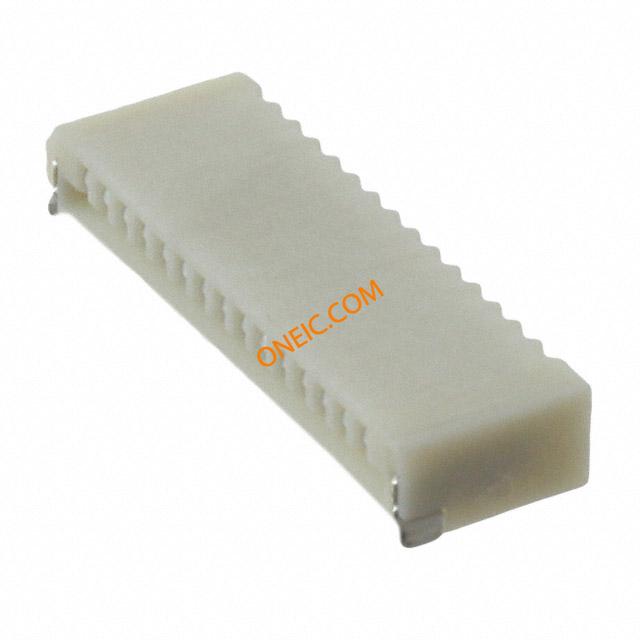

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | FFC Connector |
| Pitch | 1 mm |
| Number of Contacts | 15 |
| Number of Rows | 1 |
| Body Orientation | Right Angle |
| Mounting | Surface Mount |
| Standard Package | Tape & Reel |
| Comment | Non-ZIF |
| Profile | Standard |
| Lead Free Solder Processes | Reflow solder capable to 245?°C |
| Centerline (mm (in)) | 1.00 [0.039] |
| PCB Mount Style | Surface Mount |
| PCB Mount Angle | Right Angle |
| Housing Material | Polyphthalamide (PPA) |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Housing Color | Beige |
| Contact Mating Area Plating Material | Tin |
| Contact Type | Top |
| Housing Flammability Rating | UL 94V-0 |
| RoHSELV Compliance History | Always was RoHS compliant |
| Number of Positions | 15 |
| Contact Material | Phosphor Bronze |
| Packaging | Tape & Reel (TR) |
| Current Rating | 1A |
| Features | Solder Retention |
| Mounting Type | Surface Mount, Right Angle |
| Voltage Rating | 125V |
| FFC, FCB Thickness | 0.30mm |
| Connector Type | Top Contacts |
| Contact Finish | Tin |
| Operating Temperature | -20°C ~ 85°C |
| Height Above Board | 0.118" (3.00mm) |
| Termination | Solder |
| Cable End Type | Straight |
| rohs | Lead free / RoHS Compliant |
| Other Names | A101374CT |
| Factory Pack Quantity | 1500 |
| Mounting Angle | Right |
| Product Category | FFC & FPC Connectors |
| Contact Location | Top Contact |
| Gender | Female |
| Termination Style | SMD |
| Number of Positions / Contacts | 15 |
| Contact Plating | Tin |
| Product Type | Board Mount |
| RoHS | RoHS Compliant |
| Operating Temp Range | -20C to 85C |
| Current Rating (Max) | 1/Contact A |
| Mounting Style | Surface Mount |
| Number of Contact Rows | 1 |
| Product Length (mm) | 18 mm |
| Product Depth (mm) | 5.6 mm |
| Product Height (mm) | 3 mm |
| Voltage Rating Max | 125VAC |
| Termination Method | Solder |
| Contact Gender | SKT |
| Pitch (mm) | 1 mm |
| Series | :FPC |
| Pitch Spacing | :1mm |
| No. of Contacts | :15 |
| No. of Rows | :1 |
| Contact Termination | :Surface Mount Right Angle |
| Weight (kg) | 0 |
| Tariff No. | 00000000 |
