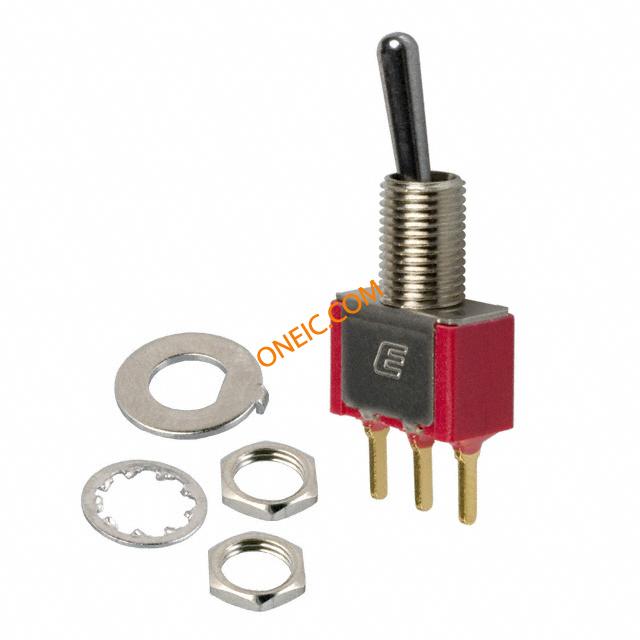

100SP1T1B1M2REH
SWITCH TOGGLE SPDT .4VA 5PCS
廠商型號:
100SP1T1B1M2REH
芯天下內部編號:
129-100SP1T1B1M2REH
生產廠商:
E-Switch
描述:
SWITCH TOGGLE SPDT .4VA 5PCS
產品類別:
Switches|Toggle Switches|100
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Circuit | SPDT |
| Illumination | Non-Illuminated |
| Switch Function | On-On |
| Current Rating | 0.4VA (AC/DC) |
| Panel Cutout Dimensions | Circular - 6.35mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 20V |
| Electrical Life | 40,000 Cycles |
| Termination Style | PC Pin |
| Packaging | Bulk |
| Operating Temperature | -30°C ~ 85°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Voltage Rating - DC | 20V |

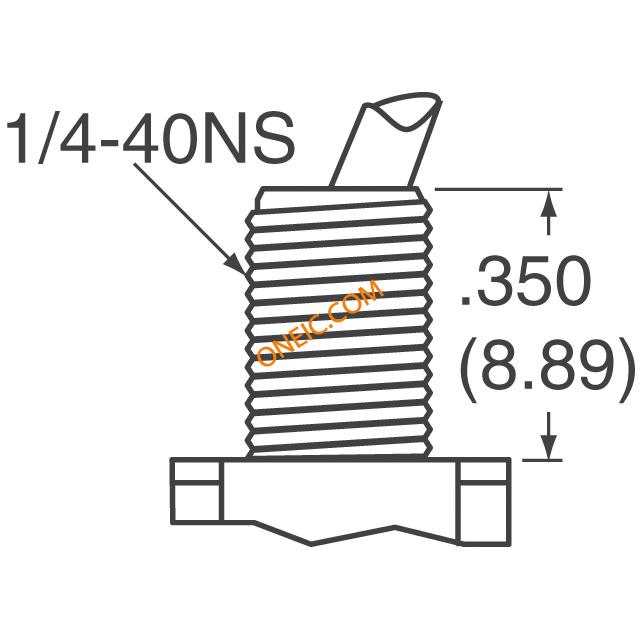

| Bushing Thread | 1/4-40 |
| Actuator Material | Brass, Chrome Plated |
| Actuator Length | 10.41mm |
| Features | Epoxy Sealed Terminals |
| Voltage Rating AC | 20 V |
| Product Category | Toggle Switches |
| Terminal Seal | Sealed |
| Series | 100 |
| Contact Form | SPDT |
| Bushing Size | 1/4-40 |
| Mounting Style | Through Hole |
| Contact Plating | Gold |
| Actuator | Bat |
| Part # Aliases | 100SP1T1B1M2RE |
| RoHS | RoHS Compliant |
| Sealed | Yes |
| Contact Configuration | SPDT |
| Hardware | Yes |
| Contact Rating @ Voltage | 0.4VA @ 20VAC/DC |
| MainCategory | Switches |
| SubCategory | Toggle Switch |
