101-1156

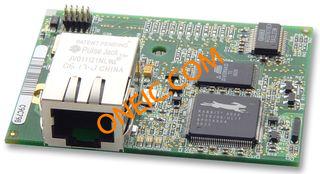

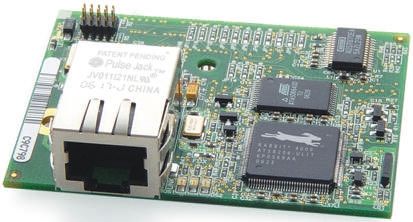

Development Boards & Kits - Other Processors RCM4200 Dev Kit (Intl)
廠商型號:
101-1156
芯天下內部編號:
307-101-1156
生產廠商:
Rabbit Semiconductor
描述:
Development Boards & Kits - Other Processors RCM4200 Dev Kit (Intl)
產品類別:
Embedded Solutions|Engineering Tools|Embedded Processor Development Tools|Development Boards & Kits - Other Processors
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Development Boards & Kits - Other Processors |
| RoHS | No |
| Product | Development Kits |
| Tool Is For Evaluation Of | RCM4200 |
| Core | Rabbit 400 |
| Interface Type | Serial |
| Operating Supply Voltage | 3.3 V |
| Data Bus Width | 8 bit |
| Type | MPU Module |
| For Use With/Related Products | RCM4200 |
| Contents | RabbitCore Module, Dev. Board, AC Adapter, Cable and Dynamic C? CD-Rom |
| Standard Package | 1 |
| rohs | Lead free / RoHS Compliant |
| Core Processor | Rabbit 4000 |
| Dimensions | 47 x 61 x 21mm |
| Height | 21mm |
| Included Features | Analogue to Digital Converter, Input Capture, Pulse Width Modulator, Quadrature Decoder, Real Time Clock, Slave Interface, Timers, Watchdog/Supervisor |
| Kit Includes | Backup Battery, Core Module |
| Kit Type | Network & Control |
| Length | 61mm |
| Maximum Operating Temperature | +85°C |
| Minimum Operating Temperature | -40°C |
| Processor Clock Speed | 59MHz |
| Supported Bus Interfaces | Asynch, IrDA, SPI |
| Supported I/O Interfaces | GPIO, Parallel |
| Supported Network Interfaces | 10/100 Base-T, RJ45 |
| Width | 47mm |
| Silicon Manufacturer | :Rabbit Semiconductor |
| Core Architecture | :Rabbit 4000 |
| Core Sub-Architecture | :RCM4000 |
| Silicon Core Number | :AT58206-UL1T |
| Silicon Family Name | :AT58206-UL1T |
| Kit Contents | :RCM4200 Module, Prototyping Board, AC Adapter, Cable, Dynamic C CD-ROM, Getting Started Instructions |
| Features | :- |
| Development Tool Type | :Development Kit |
| External Depth | :21mm |
| External Width | :47mm |
| Kit Features | :Rabbit 4000 Microprocessor, 10/100Base-T Ethernet, 512K Flash/512K Data SRAM, 4MB, 8MB Serial Flash |
| MCU Supported Families | :RCM4200 |
| Output Configuration | :35 I/O lines |
| Supply Voltage DC Max | :3.3V |
| Temperature Max | :85°C |
| Temperature Min | :-40°C |
| Weight (kg) | 0.55 |
| Tariff No. | 84733080 |
