Conn Disconnect Terminal Blocks 2 POS Screw Cable Mount 41A

廠商型號: 1017000000
芯天下內部編號: 629-1017000000
生產廠商:
weidmuller weidmuller
描述: Conn Disconnect Terminal Blocks 2 POS Screw Cable Mount 41A
產品類別: Interconnect|Connector Terminal Blocks
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

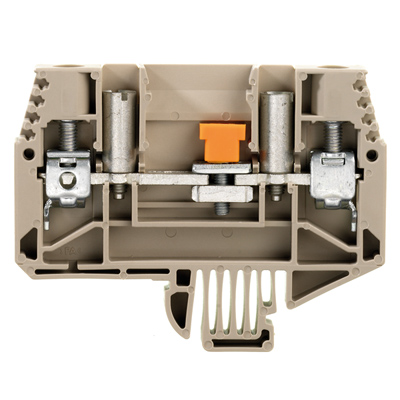

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Disconnect Terminal Blocks
Termination Method Screw
Mounting Cable Mount
Number of Rows 2
Housing Color Dark Beige
Wire Size 8-20 AWG
Standard Package Bulk
Number of Positions 2
Number of Levels 1
Disconnect Type Switch, Slide
Wire Gauge or Range - mm2 0.5-10mm2
Color Beige
Stripping Length 12mm
Termination Style Screw
Wire Gauge or Range - AWG 8-20 AWG
Terminal - Width 7.9mm
Material - Insulation Thermoplastic, Wemid
Current - IEC 41A
Voltage - IEC 630V
Current - UL 45A
Voltage - UL 300V
Material Flammability Rating UL94 V-0
Other Names WTL 6/1/STB/32
rohs Lead free / RoHS Compliant
Net weight 24.46?g
Width 7.9?mm
Wire connection cross section AWG, max AWG 8
Volume resistance according to IEC 60947-7-x 0.78?mΩ
Explosion-tested version No
Rated impulse withstand voltage 6 kV
Height (inches) 2.559?inch
Conductor size Field wiring min* (UR) 20 AWG
Current size C (UR) 45 A
Wire connection cross section, solid core, min* rated connection 0.5?mm2
Clamping range, rated connection, min 0.5?mm2
Wire cross section min* (CSA) 20 AWG
Colour Dark Beige
Wire connection cross section, stranded, rated connection, min 1.5?mm2
PEN function No
Wire connection cross-section, finely stranded, min 0.5?mm2
Number of connections 2
Tightening torque, min 1?Nm
N-function No
Tightening torque, max 1.6?Nm
Conductor size Factory wiring max* (UR) 8 AWG
Clamping range, rated connection, max 10?mm2
Wire connection cross section AWG, min AWG 20
Torque max* screw separator 0.7?Nm
No* of clamping points per level 2
Current size C (CSA) 45 A
Pollution severity 3
Mounting rail TS 32
UL 94 flammability rating V-0
Wire connection cross section, finely stranded, max 10?mm2
Version Screw connection, Disconnection element, with sockets, One end without connector
eClass 9*0 27-14-11-26
eClass 5*1 27-14-11-26
Material Wemid
PE function No
eClass 8*1 27-14-11-26
Conductor size Factory wiring min* (UR) 20 AWG
PE connection No
eClass 9*1 27-14-11-26
eClass 6*2 27-14-11-26
End cover plate required Yes
Voltage size C (UR) 300 V
eClass 7*1 27-14-11-26
Clamping screw M 3.5
Cross-section for connected conductor, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, min 0.5?mm2
Type of connection Screw connection
ROHS Conform
ETIM 3*0 EC000902
GTIN (EAN) 4008190169039
Type of mounting Snap-on
Current at maximum wires 57?A
Integral test socket Yes
Rated current 41?A
Open sides right
UNSPSC 30-21-18-11
Depth including DIN rail 48.5?mm
Wire cross section max* (CSA) 8 AWG
Gauge to IEC 60947-1 A5
ETIM 5*0 EC000902
Number of potentials 1
Depth (inches) 1.87?inch
Number of similar terminals 1
Levels cross-connected internally No
Continuous operating temp, min -50?°C
Wire connection cross-section, finely stranded with wire-end ferrules and plastic collars DIN 46228/4, rated connection, max 6?mm2
Declaration of Conformity DE_PT1004_20160418_994_ISSUE01.pdf
Continuous operating temp, max 120?°C
Stripping length 12?mm
Height 65?mm
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, min 0.5?mm2
Wire connection cross section, solid core max* rated connection 10?mm2
Connection direction on side
Certificate No* (CSA) 200039-1057876
Number of potentials per tier 1
Voltage size C (CSA) 300 V
Engineering data EPLAN
Number of levels 1
Wire connection cross section, finely stranded with wire-end ferrules DIN 46228/1, rated connection, max 6?mm2
Slitting sliding
Rated cross-section 6?mm2
Wire connection cross section, stranded, rated connection, max 10?mm2
Certificate No* (UR) E60693
ETIM 4*0 EC000902
Blade size 0.8 x 4.0 mm
Depth 47.5?mm
Cross-disconnect without
Torque level with DMS electric screwdriver 3
Conductor size Field wiring max* (UR) 8 AWG
Width (inches) 0.311?inch
ETIM 6*0 EC000902
Torque min* screw separator 0.5?Nm
Rated voltage 630?V
