12061A100JAT2A
Cap Ceramic 10pF 100V C0G 5% SMD 1206 125°C Paper T/R
廠商型號:
12061A100JAT2A
芯天下內部編號:
10-12061A100JAT2A
生產廠商:
avx
描述:
Cap Ceramic 10pF 100V C0G 5% SMD 1206 125°C Paper T/R
產品類別:
Capacitor|Capacitor Ceramic Multilayer

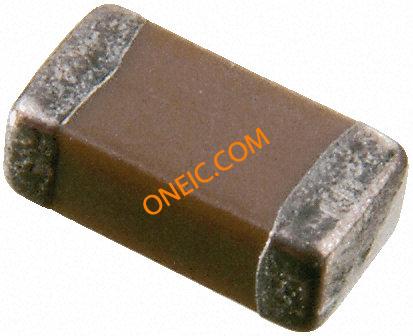

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 1206 |
| Mounting | Surface Mount |
| Capacitance Value | 10 pF |
| Voltage | 100 Vdc |
| Tolerance | 5 % |
| Dielectric | C0G |
| Type | Flat |
| Operating Temperature | -55 to 125 °C |
| Product Length | 3.2 mm |
| Product Height | 0.94(Max) mm |
| Product Depth | 1.6 mm |
| Standard Package | Tape & Reel |
| Product Category | Multilayer Ceramic Capacitors MLCC - SMD/SMT |
| RoHS | RoHS Compliant By Exemption |
| Capacitance | 10 pF |
| Voltage Rating | 100 V |
| Temperature Coefficient / Code | C0G (NP0) |
| Case Code - in | 1206 |
| Case Code - mm | 3216 |
| Operating Temperature Range | - 55 C to + 125 C |
| Product | General Type MLCCs |
| Packaging | Reel |
| Dimensions | 1.6 mm W x 3.2 mm L x 0.5 mm H |
| Package / Case | 1206 (3216 metric) |
| Factory Pack Quantity | 4000 |
| Termination Style | SMD/SMT |
| Product Length | 3.2 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 125 |
| Product Depth | 1.6 |
| Product Height | 0.94(Max) |
| Construction | Flat |
| Case Style | Ceramic Chip |
| Technology | Standard |
| Unit Pack | 4000 |
| MOQ | 8000 |
| Mounting Type | Surface Mount, MLCC |
| Voltage - Rated | 100V |
| Temperature Coefficient | C0G, NP0 |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |
| Applications | General Purpose |
| Thickness (Max) | 0.037" (0.94mm) |
| rohs | Lead free / RoHS Compliant |
| Other Names | 478-1438-1 |
| Depth | 1.6mm |
| Height | 0.94mm |
| Length | 3.2mm |
| Maximum Operating Temperature | +125°C |
| Minimum Operating Temperature | -55°C |
| Tolerance Minus | -5% |
| Tolerance Plus | +5% |
| Case Length | 3.2 mm |
| Case Height | 0.5 mm |
| Case Width | 1.6 mm |
| Dissipation Factor DF | 2.5 |
| Operating Temp Range | -55C to 125C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 5% |
| Temp Coeff (Dielectric) | C0G |
| Wire Form | Not Required |
| Mounting Style | Surface Mount |
| Product Length (mm) | 3.2 mm |
| Product Depth (mm) | 1.6 mm |
| Product Height (mm) | 0.94 mm |
| Product Diameter (mm) | Not Required mm |
| Product Range | :- |
| Capacitance Tolerance | :± 5% |
| Dielectric Characteristic | :C0G / NP0 |
| Capacitor Case Style | :1206 [3216 Metric] |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Capacitor Terminals | :SMD |
| External Depth | :1.05mm |
| External Length / Height | :3.2mm |
| External Width | :1.6mm |
| No. of Pins | :2 |
| Reel Quantity | :3000 |
| Tape Width | :8mm |
| Terminal Type | :Surface Mount (SMD, SMT) |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Voltage Rating V DC | :100V |
| Weight (kg) | 0.11 |
| Tariff No. | 85322400 |
| CaseSize | 1206(3216mm) |
| Termination | SMT |
| Case | 1206 |
| Multiplicity | 50 |
| Gross weight | 0.04 g |
| Capacitor type | ceramic |
| Capacitor kind | MLCC |
| Operating voltage | 100V |
| Collective package [pcs] | 4000 |
| spg | 4000 |
