1230070000
TERMINAL END PLATE 2MM GREY
廠商型號:
1230070000
芯天下內部編號:
629-1230070000
生產廠商:
Weidmuller
描述:
TERMINAL END PLATE 2MM GREY
產品類別:
Connectors, Interconnects|Terminal Blocks - Accessories|P

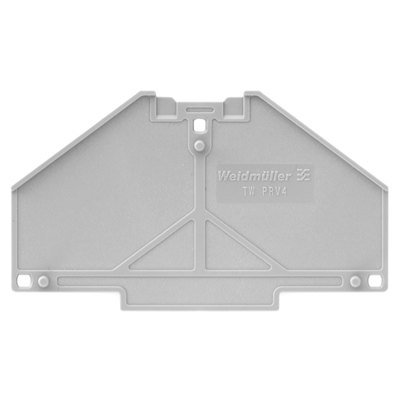

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Color | Gray |
| Standard Package | 1 |
| Type | Partition, Rail Type |
| For Use With/Related Products | P Series |
| Flammability rating | UL94V-0 |
| Number of ways | 4 |
| Connectors features | A..D marks |
| Multiplicity | 1 |
| Gross weight | 4.83 g |
| Application | PPV, PRV |
| Operating temperature | -25...70°C |
| Connector accessories type | separating plate |
| Collective package [pcs] | 10 |
| spg | 10 |
| ETIM 3*0 | EC000886 |
| Mounting rail | none |
| Engineering data | EPLAN |
| Net weight | 4.63?g |
| Width | 2?mm |
| Version | Printed A-D, horizontal |
| UL 94 flammability rating | V-0 |
| eClass 9*0 | 27-14-11-33 |
| Material | Polycarbonate |
| Height (inches) | 2.756?inch |
| GTIN (EAN) | 4050118013764 |
| eClass 8*1 | 27-14-11-33 |
| ETIM 4*0 | EC000886 |
| ETIM 5*0 | EC000886 |
| Number of levels | 4 |
| Depth (inches) | 1.618?inch |
| eClass 9*1 | 27-14-11-33 |
| Colour | Grey |
| eClass 7*1 | 27-14-11-20 |
| Continuous operating temp, min | -50?°C |
| Depth | 41.1?mm |
| Continuous operating temp, max | 125?°C |
| Width (inches) | 0.079?inch |
| ETIM 6*0 | EC000886 |
| Height | 70?mm |
| eClass 6*2 | 27-14-11-20 |
| ROHS | Conform |
