12TL1-2
Toggle Switches Toggle SW,DPDT 2POS Standard Lever
廠商型號:
12TL1-2
芯天下內部編號:
159-12TL1-2
生產廠商:
Honeywell
描述:
Toggle Switches Toggle SW,DPDT 2POS Standard Lever
產品類別:
Electromechanical|Switches|Toggle Switches
客戶編號:
規格書:
查看PDF

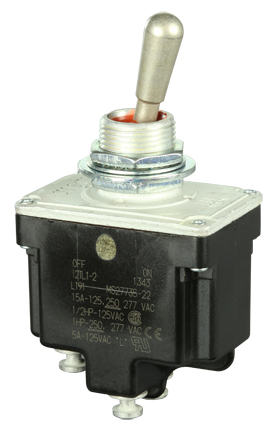

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| RoHS | No |
| Contact Form | DPST |
| Switch Function | OFF - NONE - ON |
| Current Rating | 20 A |
| Voltage Rating AC | 277 V |
| Voltage Rating DC | 250 V |
| Termination Style | Solder |
| Mounting Style | Wire |
| Terminal Seal | Sealed |
| Illumination | Non-Illuminated |
| Actuator | Lever |
| Bushing Size | 15/32-32 |
| Actuator Style | Round Lever |
| Product Length | 34.04 |
| EU RoHS | RoHS Not Applicable |
| Maximum Operating Temperature | 71 |
| Product Depth | 23.11 |
| Pole Throw Configuration | DPST |
| Mounting | Panel Mount with Threads |
| Maximum AC Voltage Rating | 277 |
| Maximum Current Rating | 20@28VDC |
| Maximum Power Rating | 745.7@(CSA/UL) |
| Maximum DC Voltage Rating | 250 |
| Switch Configuration | OFF ON |
| Minimum Operating Temperature | -65 |
| Product Height | 63.5 |
| Terminal Type | Solder |
| Comment | Single turret solder lug termination |
| CircuitryOperating action | 124876 |
| Lever Type | Standard |
| Series Name | TL |
| AmpereVoltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
| UNSPSC Commodity | 30211908 Toggle switches |
| Circuitry | DPST |
| UNSPSC Code | 30211908 |
| Termination | Solder |
| ULCSA Rating Code | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
| Military Part Number | MS27735-22 |
| Industry Aliases | 5930003256153, MS27735-22 |
| Subcategory | Switch Toggle |
| Lead Time | 14 Days |
| Circuit | DPST |
| Panel Cutout Dimensions | Circular - 12.40mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Packaging | Bulk |
| Operating Temperature | -65°C ~ 71°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Ingress Protection | Environment Proof |
| Bushing Thread | 15/32-32 |
| Actuator Material | Nickel Plated |
| Actuator Length | 17.27mm |
| rohs | Lead free / RoHS Compliant |
| Product Type | MICRO SWITCHa?￠ Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vac to 277 Vac |
| Action | 2 position |
| Circuitry/Operating action | Bushing 15/32 in |
| MIL Spec Number | Standard |
| UL/CSA | Single turret solder lug termination |
