142138
Conn SMB RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold
廠商型號:
142138
芯天下內部編號:
36-142138
生產廠商:
amphenol connex
描述:
Conn SMB RCP 0Hz to 4GHz 50Ohm Solder ST Thru-Hole Gold
產品類別:
Interconnect|Connector RF

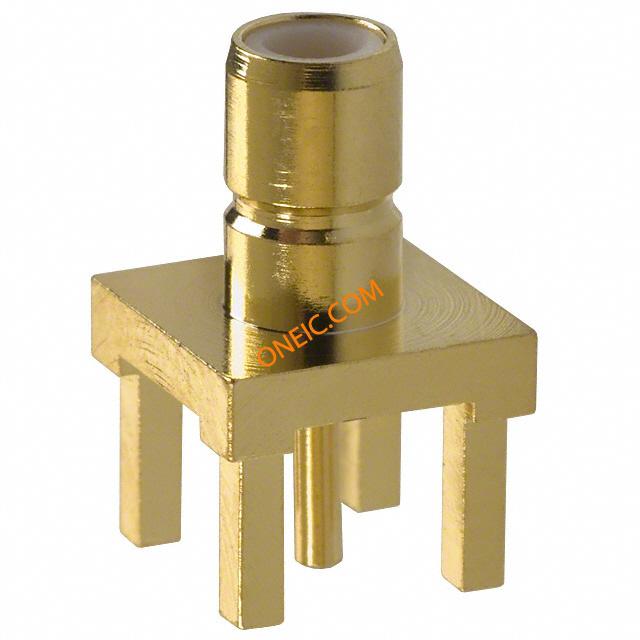

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | SMB |
| Gender | RCP |
| Impedance | 50 Ohm |
| Operating Frequency | 0 to 4 GHz |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Contact Material | Beryllium Copper |
| Contact Plating | Gold |
| Terminate To | PCB |
| Standard Package | Bag |
| Product Length | 7 |
| EU RoHS | Compliant |
| Body Plating | Gold |
| Impedance | 50 |
| Product Height | 7.6 |
| Product Depth | 7 |
| Body Material | Brass |
| Operating Frequency | 0 to 4G |
| Insulation Material | Polytetrafluoroethylene |
| Center Contact Material | Brass |
| Operating Temperature | -65°C ~ 165°C |
| Connector Style | SMB |
| Body Finish | Gold |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Center Contact Plating | Gold |
| Shield Termination | Solder |
| Frequency - Max | 4GHz |
| Housing Color | Gold |
| Connector Type | Jack, Male Pin |
| Fastening Type | Snap-On |
| Mounting Type | Through Hole |
| Contact Termination | Solder |
| Packaging | Bulk |
| Other Names | ACX1312 |
| rohs | Lead free / RoHS Compliant |
| Polarity | Standard |
| Termination Style | PCB - Through Hole |
| Part # Aliases | 319-0234 |
| Product | PCB Connectors |
| Product Category | RF Connectors / Coaxial Connectors |
| Unit Weight | 0.028925 oz |
| Maximum Frequency | 4 GHz |
| RF Series | SMB |
| Operating Temperature Range | - 65 C to + 165 C |
| Body Style | Straight |
| Mating Cycles | 500 |
| RoHS | RoHS Compliant By Exemption |
| Orientation | Straight |
| Coupling Mechanism | Push On |
| Coaxial Termination | :Solder |
| Frequency Max | :4GHz |
| Connector Mounting | :PCB |
| Weight (kg) | 0 |
| Tariff No. | 85366910 |
| Coaxial Cable Types | :- |
| Series | :- |
| Angle | Straight |
| Application | Commercial |
| Finish, Housing | Gold |
| Material, Contact | Brass |
| Material, Dielectric | TFE |
| Material, Housing | Brass |
| Mating Type | Snap-On |
| Primary Type | SMB |
| Special Features | Captivated Contact |
| Termination | 4-Pin Thru Hole |
