15102C
Ind General Purpose 1uH 20% 10KHz 151Q-Factor 16.2A RDL Carton
廠商型號:
15102C
芯天下內部編號:
233-15102C
生產廠商:
murata power solutions
描述:
Ind General Purpose 1uH 20% 10KHz 151Q-Factor 16.2A RDL Carton
產品類別:
Inductor|Inductor Leaded

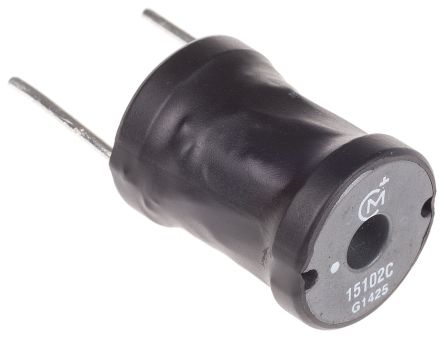

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | General Purpose |
| Inductance | 1 uH |
| Tolerance | 20 % |
| Maximum DC Current | 16.2 A |
| Lead Style | Radial |
| Product Height | 21.3 mm |
| Maximum DC Resistance | 2.76 Ohm |
| Operating Temperature | -40 to 85 °C |
| Minimum Quality Factor | 151(Typ)@1MHz |
| Standard Package | Bulk |
| Unit Pack | 40 |
| MOQ | 40 |
| Diameter | 16.8mm |
| Dimensions | 16.8 Dia. x 21.3mm |
| Height | 21.3mm |
| Lead Pitch | 13.6mm |
| Maximum Operating Temperature | +85°C |
| Maximum Self Resonant Frequency | 142MHz |
| Minimum Operating Temperature | -40°C |
| rohs | Compliant |
| Case Diameter | 16.8 mm |
| Product | Inductors |
| Product Category | Fixed Inductors |
| Operating Temperature Range | - 40 C to + 85 C |
| Series | 1500 |
| Termination Style | Radial |
| Self Resonant Frequency | 142 MHz |
| Packaging | Tray |
| Case Length | 21.3 mm |
| Test Frequency | 1000 kHz |
| Q Minimum | 151 |
| RoHS | RoHS Compliant |
| 系列 | 1500 |
| 最小質量系數 | 151 |
| 最高工作溫度 | +85°C |
| 安裝類型 | 徑向 |
| 容差 | ±20% |
| 高度 | 21.3mm |
| 最低工作溫度 | -40°C |
| 尺寸 | 16.8 (Dia.) x 21.3mm |
| 電感值 | 1 μH |
| 直徑 | 16.8mm |
| 最大自諧振頻率 | 142MHz |
| 最大直流電阻值 | 2.76Ω |
| 最大直流電流 | 16.2A |
| 引線節距 | 13.6mm |
