15103C
Ind General Purpose 10uH 10% 10KHz 112Q-Factor 9.01A RDL Carton
廠商型號:
15103C
芯天下內部編號:
233-15103C
生產廠商:
murata power solutions
描述:
Ind General Purpose 10uH 10% 10KHz 112Q-Factor 9.01A RDL Carton
產品類別:
Inductor|Inductor Leaded
客戶編號:
規格書:
查看PDF

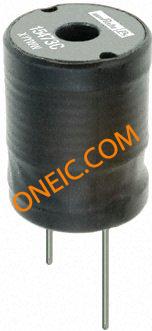

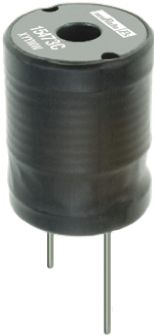

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | General Purpose |
| Inductance | 10 uH |
| Tolerance | 10 % |
| Maximum DC Current | 9.01 A |
| Lead Style | Radial |
| Product Height | 21.3 mm |
| Maximum DC Resistance | 10.6 Ohm |
| Operating Temperature | -40 to 85 °C |
| Minimum Quality Factor | 112(Typ)@1MHz |
| Standard Package | Bulk |
| Product Category | Fixed Inductors |
| RoHS | RoHS Compliant |
| Operating Temperature Range | - 40 C to + 85 C |
| Self Resonant Frequency | 30 MHz |
| Q Minimum | 112 |
| Dimensions | 16.8 mm Dia. x 21.3 mm L |
| Termination Style | Radial |
| Case Diameter | 16.8 mm |
| Case Length | 21.3 mm |
| Packaging | Tray |
| Product | Inductors |
| Series | 1500 |
| Test Frequency | 1000 kHz |
| メーカ | Murata |
| 製品カテゴリ | 固定インダクタ |
| インダクタンス | 10 uH |
| 最大 DC 電流 | 9.01 A |
| 最大 DC 抵抗 | 10.6 Ohms |
| 動作溫度範囲 | - 40 C to + 85 C |
| 自己共振周波數 | 30 MHz |
| Q 最小値 | 112 |
| 寸法 | 16.8 mm Dia. x 21.3 mm L |
| 末端様式 | Radial |
| ケースの直徑 | 16.8 mm |
| ケースの長さ | 21.3 mm |
| パッケージ化 | Tray |
| 製品 | Inductors |
| シリーズ | 1500 |
| テスト周波數 | 1000 kHz |
| タイプ | Radial Lead Inductors |
| Unit Pack | 40 |
| MOQ | 40 |
| Diameter | 16.8mm |
| Height | 21.3mm |
| Lead Pitch | 14.5mm |
| Maximum Operating Temperature | +85°C |
| Maximum Self Resonant Frequency | 30MHz |
| Minimum Operating Temperature | -40°C |
| rohs | Compliant |
| 系列 | 1500 |
| 最小質量系數 | 112 |
| 最高工作溫度 | +85°C |
| 安裝類型 | 徑向 |
| 容差 | ±10% |
| 高度 | 21.3mm |
| 最低工作溫度 | -40°C |
| 尺寸 | 16.8 (Dia.) x 21.3mm |
| 電感值 | 10 μH |
| 直徑 | 16.8mm |
| 最大自諧振頻率 | 30MHz |
| 最大直流電阻值 | 10.6mΩ |
| 最大直流電流 | 9.01A |
| 引線節距 | 14.5mm |
| Current sat | 9010 mA |
| Mounting | RADIAL |
| SFR | 30 MHz |
| T(A)min | -40 °C |
| R(DC)max | 0.0106 Ohm |
| Technology | WIREWOUND |
| Pitch | 14.5 mm |
| Automotive | NO |
| T(A)max | 85 °C |
| Current rated | 9010 mA |
| Leadfree Defin | RoHS-conform |
