1581-8
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK GRAY
廠商型號:
1581-8
芯天下內部編號:
297-1581-8
生產廠商:
Pomona Electronics
描述:
Test Plugs & Test Jacks PANEL MOUNT BANANA JACK GRAY
產品類別:
Test & Measurement|Test Equipment Accessories|Test Plugs & Test Jacks

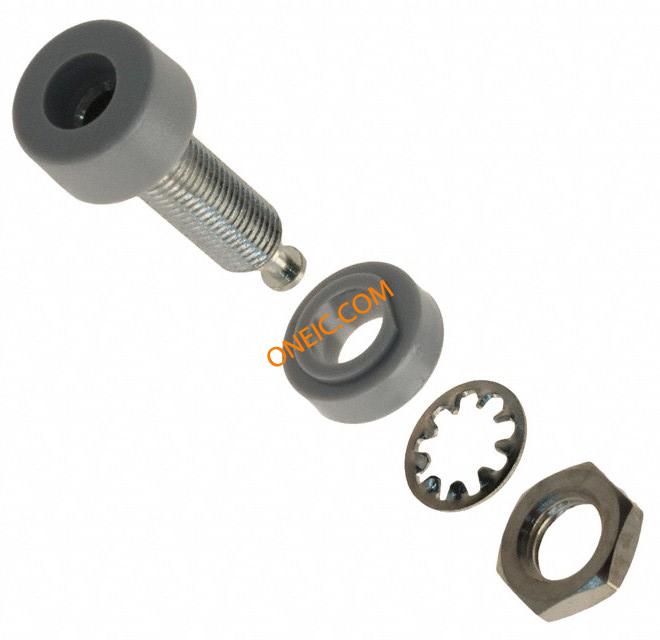

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Test Plugs & Test Jacks |
| RoHS | RoHS Compliant |
| Equipment Type | Banana Jacks |
| Type | Panel mount |
| Color | Gray |
| Current Rating | 15 A |
| Contact Plating | Tin |
| Contact Material | Brass |
| Insulation | Insulated |
| Insulation Material | Polycarbonate |
| Length | 1.22 in |
| Operating Temperature | + 115 C |
| Factory Pack Quantity | 10 |
| Voltage Rating | 2.5 kV |
| Part # Aliases | 1939396 |
| Product Length | 30.99 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 115 |
| Product Diameter | 12.7 |
| Number of Contacts | 1 |
| Mounting | Panel Mount |
| Body Orientation | Straight |
| Product Height | 12.7 |
| Housing Material | Polycarbonate |
| Number of Ports | 1 |
| Housing Color | Gray |
| Gender | F |
| Maximum Current Rating | 15 |
| Plug/Mating Plug Diameter | Standard |
| Mounting Type | Panel Mount |
| Body Material | Polycarbonate (PC) |
| Contact Finish | Tin |
| Packaging | 10 per Bag |
| Standard Package | 1 |
| Termination | Turret |
| rohs | Lead free / RoHS Compliant |
| Current Rating (Max) | 15 A |
| Mounting Style | Panel |
| Operating Temperature Max Deg. C | 115C |
| Product Length (mm) | 30.99 mm |
| Product Height (mm) | 12.7 mm |
| Series | :1581 |
| Contact Termination | :Stud / Turret |
| Connector Color | :Grey |
| Connector Mounting | :Panel |
| Weight (kg) | 0.054 |
| Tariff No. | 85369010 |
| Brand/Series | 1581Series |
| Current,Rating | 15A |
| InsulationType | Insulated |
| Material,Body | Brass |
| Material,Insulation | Polycarbonate |
| MountingType | Panel |
| PrimaryType | Banana |
| Temperature,Operating,Maximum | 115°C |
| Voltage,Rating | 30VAC/60VDC(Hand-Held),2500WVDC(HandFree) |
