16SVPC120M
CAP ALUM 120UF 16V 20% SMD
廠商型號:
16SVPC120M
芯天下內部編號:
282-16SVPC120M
生產廠商:
Panasonic Electronic Components
描述:
CAP ALUM 120UF 16V 20% SMD
產品類別:
Capacitors|Aluminum - Polymer Capacitors|OS-CON, SVPC

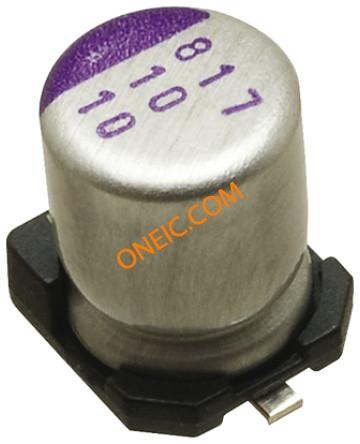

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Capacitance | 120μF |
| Construction | Metal Can |
| Diameter | 8mm |
| Dimensions | 8 x 6.9mm |
| Equivalent Series Resistance | 27mΩ |
| Height | 6.9mm |
| Leakage Current | 500 μA |
| Lifetime | 2000h |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Mounting Type | Surface Mount |
| Package/Case | E7 |
| Ripple Current | 2900mArms |
| Tolerance | ±20% |
| Tolerance Minus | -20% |
| Tolerance Plus | +20% |
| Voltage | 16 V |
| Case Diameter | 8 mm |
| Product | Organic Polymer Aluminum - SMD Capacitors |
| ESR | 27 mOhms |
| Voltage Rating | 16 V |
| Series | SVPC |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | SMD/SMT |
| Voltage Rating DC | 16 V |
| Packaging | Reel |
| Case Length | 6.9 mm |
| Product Type | Can |
| Tradename | OSCON |
| Dissipation Factor DF | 12 |
| RoHS | RoHS Compliant |
| Product Range | :PANASONIC - SVPC Series |
| Capacitor Case Style | :Radial Can - SMD |
| Ripple Current AC | :2.9A |
| Life Time @ Temperature | :2000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| MSL | :- |
| Capacitance Tolerance | :± 20% |
| Weight (kg) | 0.0011 |
| Tariff No. | 85322200 |
| rohs | Lead free / RoHS Compliant |
