175615-2

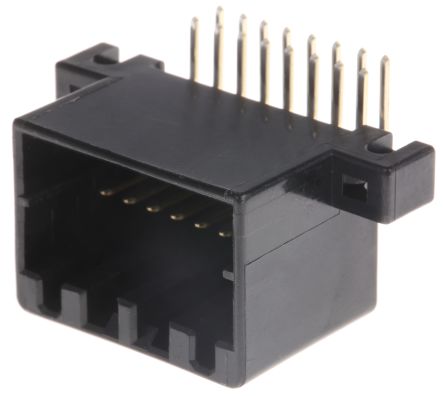

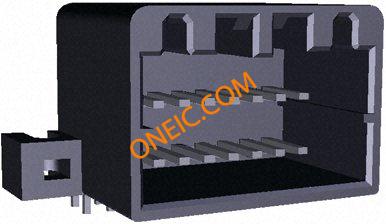

Conn Multilock Connector RCP 16 POS 2.5mm Solder RA Thru-Hole
廠商型號:
175615-2
芯天下內部編號:
35-175615-2
生產廠商:
te connectivity / amp
描述:
Conn Multilock Connector RCP 16 POS 2.5mm Solder RA Thru-Hole
產品類別:
Interconnect|Connector Headers and PCB Receptacles
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Multilock Connector |
| Pitch | 2.5 mm |
| Number of Rows | 2 |
| Number of Contacts | 16 |
| Gender | RCP |
| Contact Plating | Pre-Tin |
| Termination Method | Solder |
| Standard Package | Bulk |
| RoHS | RoHS Compliant |
| Factory Pack Quantity | 70 |
| PCB Mount Angle | Right Angle |
| Housing Material | PBT |
| Panel Attachment Method | Mounting Ear |
| Number of Positions | 16 |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240?°C |
| Product Series | 040 Mark II |
| Solder Tail Contact Plating | Matte Tin |
| Receptacle Configuration | 40 |
| Housing Color | Black |
| Mating Connector Number Positions | 16 |
| Product Type | Housing Assembly |
| Terminate To | Printed Circuit Board |
| Keyed | No |
| Contact Mating Area Plating Material | Pre-Tin |
| Proprietary Name | MULTILOCK |
| Panel Attachment | With |
| RoHSELV Compliance History | Always was RoHS compliant |
| Mating Connector Lock | Without |
| Contact Material | Brass |
| Mounting Type | Through Hole, Right Angle |
| Color | Black |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Packaging | Bulk |
| Contact Type | Tab |
| Termination | Solder |
| Row Spacing | 0.205" (5.20mm) |
| Number of Positions Loaded | All |
| rohs | Lead free / RoHS Compliant |
| Body Orientation | Right Angle |
| Depth | 22.5mm |
| For Use With | MULTILOCK Wire-to-Board Connector |
| Length | 35mm |
| Series | Mark II |
| Width | 16.9mm |
| Product | Connectors |
| Operating Temperature Range | - 30 C to + 105 C |
| Termination Style | Solder |
| Mounting Angle | Right |
| Mounting Style | Through Hole |
| Number of Contact Rows | 2 |
| Product Length (mm) | 35 mm |
| Product Depth (mm) | 22.5 mm |
| Product Height (mm) | 16.9 mm |
| Pitch (mm) | 2.5 mm |
| 觸點數目 | 16 |
| 連接器類型 | 母座 |
| 系列 | MULTILOCK 040 II |
| 主體向性 | 直角 |
| 安裝類型 | 通孔 |
| 使用于 | MULTILOCK Wire-to-Board Connector |
| 寬度 | 16.9mm |
| 外殼材料 | 聚碳酸酯 (PBT) |
| 行數 | 2 |
| 深度 | 22.5mm |
| 長度 | 35mm |
| 節距 | 2.5mm |
| Voltage Rating (Max)?(VDC) | 12 |
| Centerline (Pitch) | 2.5?mm?[?.098?in?] |
| 工作溫度（最大值）?(°C) | 100, 105, 65, 70, 75, 80, 85, 90 |
| Circuit Application | Signal |
| 信號針數量 | 16 |
| PCB 安裝固定類型 | 安裝孔 |
| 屏蔽 | 否 |
| 連接器和端子端接到 | 印刷電路板 |
| UL 易燃性等級 | UL 94-HB |
| 接觸面電鍍 | 錫 (Sn) |
| Tab Thickness | .64?mm?[?.025?in?] |
| Nominal Voltage Architecture?(V) | 12 |
| 顏色 | 黑色 |
| 鎖定接口 | 帶有 |
| PCB Mount Alignment | Without |
| Sealable | 否 |
| Number of Sections | 1 |
| PCB 安裝固定 | 不帶 |
| 面板安裝固定 | 不帶 |
| 工作溫度（最大值）?(°F) | 149, 158, 167, 176, 185, 194, 212, 221 |
| Mounting Holes | With |
| 端接方法 | 通孔 - 焊接 |
| 封裝數量 | 70 |
| 公端寬度 | 1?mm?[?.039?in?] |
| Profile Height from PCB | 16.9?mm?[?.665?in?] |
| Packaging Type | Tube |
| 混合頭 | 否 |
| PCB 厚度（建議） | 1.6?mm?[?0.063?in?] |
| 工作電壓?(VDC) | 12 |
| 工組溫度范圍?(°C) | -30 – 105 |
| 安裝方向 | 水平/90° |
