1TL1-21K
Switch Toggle None OFF ON SPST Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
廠商型號:
1TL1-21K
芯天下內部編號:
159-1TL1-21K
生產廠商:
Honeywell
描述:
Switch Toggle None OFF ON SPST Locking Lever Screw 20A 277VAC 250VDC 745.7VA Panel Mount with Threads
產品類別:
Switches|Toggle Switches|TL
客戶編號:
規格書:
查看PDF

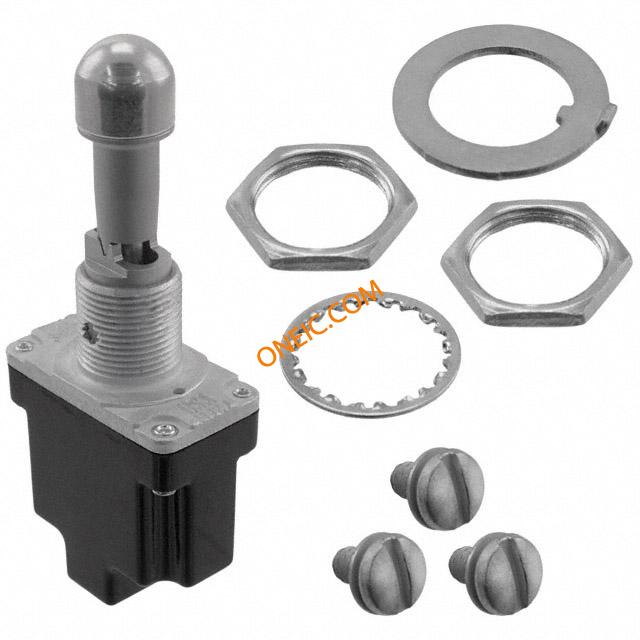

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Actuator Style | Locking Lever |
| Product Length | 28.4 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 71 |
| Product Depth | 15.7 |
| Pole Throw Configuration | SPST |
| Mounting | Panel Mount with Threads |
| Maximum AC Voltage Rating | 277@(CSA/UL) |
| Maximum Current Rating | 20@28VDC |
| Maximum Power Rating | 745.7 |
| Maximum DC Voltage Rating | 250 |
| Switch Configuration | None OFF ON |
| Minimum Operating Temperature | -65 |
| Terminal Type | Screw |
| Contact Material | Silver Cadmium Oxide |
| Comment | Silver cadmium oxide contacts |
| CircuitryOperating action | 126141 |
| Lever Type | Locking |
| Series Name | TL |
| AmpereVoltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 1 |
| UNSPSC Commodity | 30211908 Toggle switches |
| Circuitry | SPST |
| UNSPSC Code | 30211908 |
| Termination | Screw |
| Lever Lock | 126142 |
| ULCSA Rating Code | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
| Military Part Number | MS24658-24K |
| Circuit | SPST |
| Illumination | Non-Illuminated |
| Switch Function | On-Off |
| Current Rating | 15A (AC) |
| Panel Cutout Dimensions | Circular - 12.40mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Termination Style | Screw Terminal |
| Packaging | Bulk |
| Operating Temperature | -65°C ~ 71°C |
| Actuator Type | Locking Lever |
| Standard Package | 1 |
| Ingress Protection | Environment Proof |
| Bushing Thread | 15/32-32 |
| Actuator Material | Nickel Plated |
| Actuator Length | 26.67mm |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 277 V |
| Terminal Seal | Sealed |
| Contact Form | SPST |
| Voltage Rating DC | 250 V |
| Bushing Size | 15/32-32 |
| Mounting Style | Panel |
| Contact Plating | Silver Cadmium Oxide |
| Actuator | Paddle |
| RoHS | RoHS Compliant |
| Product Type | MICRO SWITCHa?￠ Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.75 A at 115 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.5 A at 250 Vdc|0.5 A to 15 A at 0.5 Vac to 277 Vac |
| Action | 3 position |
| Circuitry/Operating action | Bushing 15/32 in |
| MIL Spec Number | Locking |
| UL/CSA | Global |
