2-160256-1
Quick Disconnect Terminal 13-17AWG RCP 19mm 7.6mm Strip
廠商型號:
2-160256-1
芯天下內部編號:
35-2-160256-1
生產廠商:
te connectivity / amp
描述:
Quick Disconnect Terminal 13-17AWG RCP 19mm 7.6mm Strip
產品類別:
Interconnect|Connector Terminals

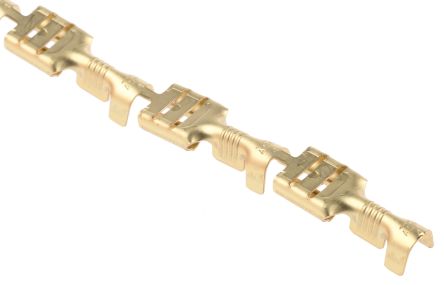

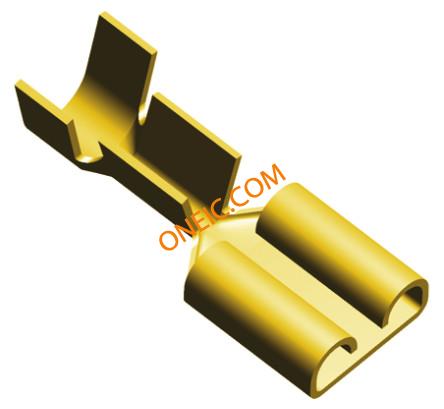

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Terminals |
| RoHS | RoHS Compliant |
| Product | Faston Terminals |
| Series | 250 |
| Gender | Female |
| Factory Pack Quantity | 6000 |
| Wire Range (mm AWG) | 1.00-2.50?2 [17-13.5] |
| Tab Fit (mm in) | 6.35 x 0.81 [.250 x .032] |
| Insulation Support | Insulation Support |
| Weld Tab | Without |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Finish | None |
| Brand | AMP |
| Material | Brass |
| UL Rating | Listed |
| Insulation Diameter (mm (in)) | 3.00-4.29 [.118-.169] |
| Line | Premier |
| Product Type | Receptacle |
| Comment | Versions according to DIN 46247, Part 3 |
| For Hermetic Header Tab | Yes |
| CSA Certified | Yes |
| Packaging Method | Strip |
| Packaging Quantity | 6,000 |
| WireCable Type | Stranded |
| Insertion Force | Normal |
| Receptacle Style | Straight |
| Crimp Type | F-Crimp |
| RoHSELV Compliance History | Always was RoHS compliant |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) |
| Wire Gauge | 13.5-17 AWG |
| Length - Overall | 0.748" (19.00mm) |
| Packaging | Tape & Reel (TR) |
| Insulation Diameter | 0.118" ~ 0.169" (3.00mm ~ 4.29mm) |
| Standard Package | 7,000 |
| Insulation | Non-Insulated |
| Termination | Crimp |
| Contact Material | Brass |
| Terminal Type | Standard |
| Tab Length | 0.303" (7.70mm) |
| rohs | Lead free / RoHS Compliant |
| Other Names | A107184CT |
| Connector Type | Quick Disconnect Terminal |
| Length | 19mm |
| Wire Size | 17 → 13 AWG |
| 連接器類型 | 快速斷開終端, 母座 |
| 系列 | FASTON .250 |
| 最大電線尺寸 AWG | 13AWG |
| 絕緣 | 非絕緣 |
| 觸點材料 | 黃銅 |
| 最小電線尺寸 AWG | 17AWG |
| 最大電線尺寸 mm2 | 2.5mm2 |
| 長度 | 19mm |
| 接片尺寸 | 6.35 x 0.81mm |
| 最小電線尺寸 mm2 | 1mm2 |
| Wire/Cable Composition | Stranded |
| Wire Size?(AWG) | 17 – 13 |
| 接受的電線絕緣直徑范圍 | 3 – 4.3?mm?[?.118 – .169?in?] |
| 接合固定類型 | 凹點 |
| 總長 | 19?mm?[?.748?in?] |
| 封裝方法 | 卷 |
| Extraction Force?(kgf) | 8.1 |
| 端子基材 | 黃銅 |
| FASTON | Yes |
| Insulated | No |
| Wire Stop | No |
| Insulated Wire Support | Yes |
| Wire Size?(mm2) | 1 – 2.5 |
| Extraction Force?(Newton) | 80 |
| 獲得 CSA 認證 | 是 |
| 端子類型 | 母端 |
| UL 等級 | 已獲認證 |
| 斷開類型 | 快速連接 |
| Connection Capacity | Multiple |
| 線纜類型 | 分離式導線 |
| 公端寬度 | 6.35?mm?[?.25?in?] |
| Barrel Type | Open |
| 電鍍材料 | 無鍍層 |
| 端子方向 | 直式 |
| 插入力 | 普通 |
| 電線絕緣直徑（最大值） | 4.3?mm?[?.169?in?] |
| 壓接類型 | F-Crimp |
| Receptacle Stock Thickness | .41?mm?[?.016?in?] |
| 封裝數量 | 7000 |
| 注釋 | 版本符合 DIN 46247 第 3 部分 |
| 公端厚度 | .81?mm?[?.032?in?] |
| 完全絕緣 | 是 |
