2-6609129-8
Power Entry Module EMI/RFI Filtered M 3 POS 240VAC 5A Switch/Fuse/Voltage Selector ST 1 Port

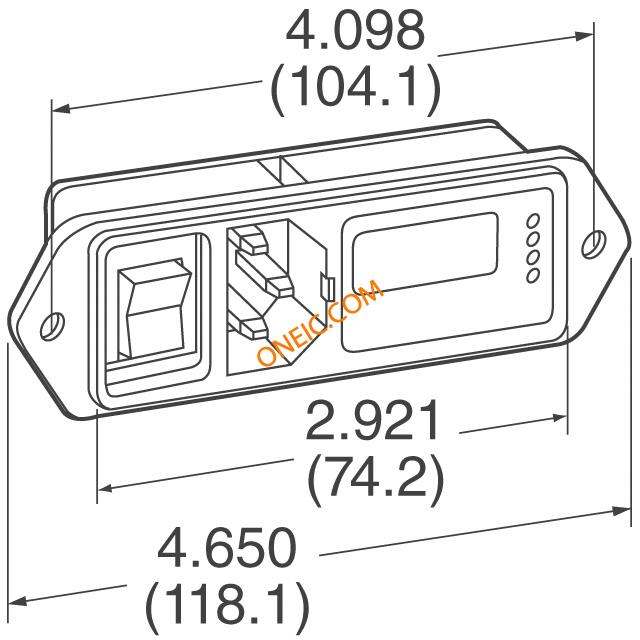

M4S-Case-Style.jpg)
M(4,4S)-Side.jpg)
廠商型號:
2-6609129-8
芯天下內部編號:
35-2-6609129-8
生產廠商:
te connectivity / corcom
描述:
Power Entry Module EMI/RFI Filtered M 3 POS 240VAC 5A Switch/Fuse/Voltage Selector ST 1 Port
產品類別:
Interconnect|Power Entry Module
客戶編號:
規格書:
查看PDF
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | EMI/RFI Filtered |
| Number of Contacts | 3 |
| Maximum Voltage Rating | 240 Vac |
| Termination Method | Faston |
| Mounting | Flange Mount |
| Connector Type | IEC 320/C14 |
| Standard Package | Bulk |
| Features | Fuse Holder, Switches, On/Off, Non-Illuminated, Voltage Selector |
| Mounting Type | Panel Mount, Screw Hole |
| Termination Style | Quick Connect |
| Current | 5A |
| Fuse Drawer | Included |
| Voltage | 120VAC |
| Filter Type | General Purpose |
| Connector Style | IEC 320-C14 (Male Pins) |
| rohs | Lead free / RoHS Compliant |
| 裝配類型 | Panel Mount, Screw Hole |
| 電流 | 5A |
| 保險絲抽屜 | Included |
| 端接樣式 | Quick Connect |
| 特性 | Fuse Holder, Switches, On/Off, Non-Illuminated, Voltage Selector |
| Leakage Current (Max) (120VAC, 60Hz)?(μA) | 250 |
| 安裝方式 | 帶凸緣 |
| Ground Choke Option | No |
| 連接器類型 | IEC 320/C-14 |
| 電壓（最大值）?(VAC) | 100, 120, 230, 240 |
| 保險絲選項 | 單, 雙 |
| 開關類型 | DPST |
| Leakage Current (Max) (250VAC, 50Hz)?(μA) | 500 |
| Ground Option | None |
| 額定電流?(A) | 5 |
| 注釋 | 可選擇電壓 |
| Input Type | IEC |
| 濾波器類型 | 電源輸入模塊 |
| Filtered | Yes |
| 安裝角度 | 垂直 |
| 輸入電壓選擇 | 四個交流 |
| Voltage Selection | 4-Voltage |
| 輸出類型 | .110 快速連接端子 |
| 工作溫度范圍?(°C) | -10 – 40 |
