213016

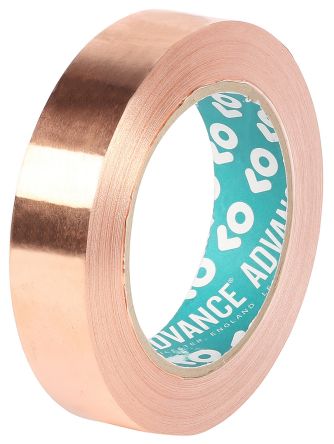

Advance Tapes 0.05mm Thick Copper Tape, 19mm x 33m, 4.5N/cm
廠商型號:
213016
芯天下內部編號:
1225-213016
生產廠商:
Advance Tapes
描述:
Advance Tapes 0.05mm Thick Copper Tape, 19mm x 33m, 4.5N/cm
產品類別:
Adhesives, Sealants & Tapes|Tapes|Copper Tapes
客戶編號:
瀏覽次數:
1
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Adhesion Strength | 4.5 N/cm |
| Adhesive Material | Acrylic |
| Conductivity | Conductive |
| Foil Thickness | 0.05mm |
| Length | 33m |
| Material Plating | None |
| Maximum Temperature Resistance | +155°C |
| Minimum Temperature Resistance | -20°C |
| Tensile Strength | 85N/cm |
| Total Thickness | 0.074mm |
| Width | 19mm |
| 耐寒性 | -20°C |
| 粘膠材料 | Thermosetting Acrylic |
| 總厚度 | 0.07mm |
| 符合 EN 法規 | BS EN 60454 - Part 2 |
| 導電性 | 導電性 |
| 粘合強度 | 4.5 N/cm |
| 葉形片厚度 | 0.05mm |
| 寬度 | 19mm |
| 型號 | AT528 |
| 材料電鍍 | 沒有 |
| 長度 | 33m |
| 拉伸強度 | 85N/cm |
| 耐熱性 | +155°C |
