21312E
SKF Roller Bearing 21312E
廠商型號:
21312E
芯天下內部編號:
3767-21312E
生產廠商:
SKF
描述:
SKF Roller Bearing 21312E
產品類別:
Pneumatics, Hydraulics & Power Transmission|Power Transmission - Rotary Bearings|Roller Bearings
客戶編號:
瀏覽次數:
9

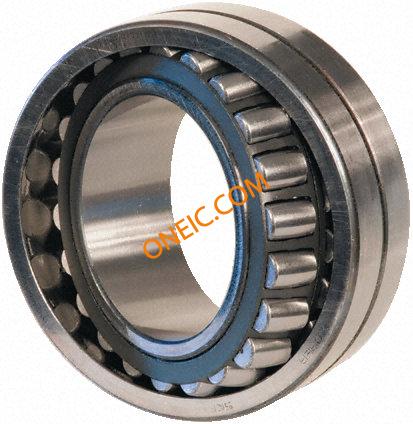

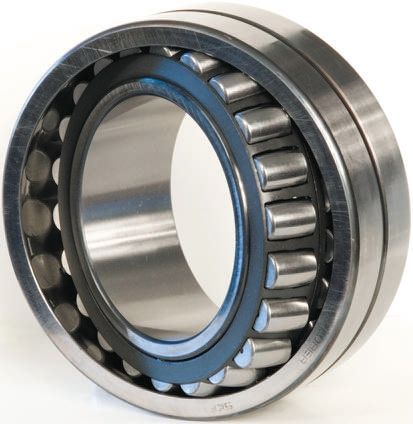

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Bore Type | Parallel |
| Cage Material | Steel |
| Dynamic Load Rating | 212kN |
| End Type | Open |
| Fatigue Limit Load | 26.5kN |
| Inside Diameter | 60mm |
| Limiting Speed | 6300rpm |
| Material | Metal |
| Number of Rows | 2 |
| Outside Diameter | 130mm |
| Race Width | 31mm |
| Reference Speed | 4800rpm |
| Roller Bearing Type | Spherical |
| Static Load Rating | 240kN |
| 滾子軸承類型 | 球形 |
| 滾道寬度 | 31mm |
| 靜態額定負荷 | 240kN |
| 外徑 | 130mm |
| 疲勞極限載荷 | 26.5kN |
| 內徑 | 60mm |
| 材料 | 金屬 |
| 極限速度 | 6300rpm |
| 參考速度 | 4800rpm |
| 終端類型 | 開口 |
| 行數 | 2 |
| 額定動負荷 | 212kN |
| 框材料 | 鋼 |
| 孔類型 | 并行 |
