21SM284
Basic / Snap Action Switches 5A 115 VAC Pin Plunger
廠商型號:
21SM284
芯天下內部編號:
159-21SM284
生產廠商:
Honeywell
描述:
Basic / Snap Action Switches 5A 115 VAC Pin Plunger
產品類別:
Electromechanical|Switches|Basic / Snap Action Switches

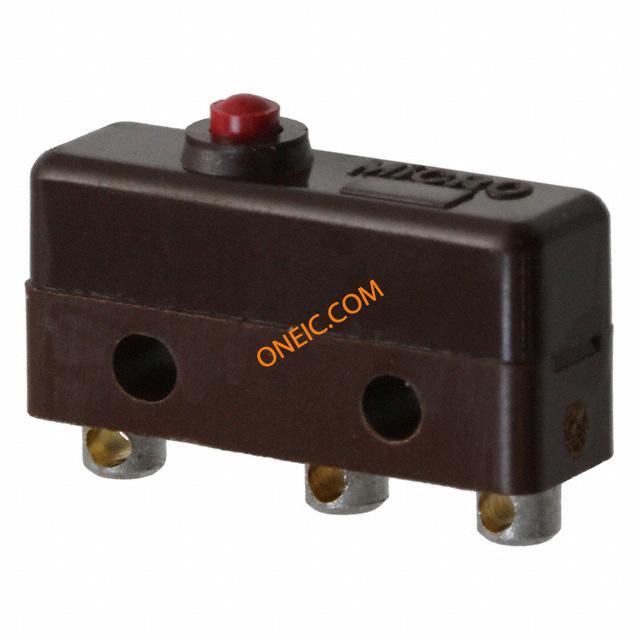

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Basic / Snap Action Switches |
| RoHS | No |
| Contact Form | SPDT |
| Actuator | Plunger, Pin |
| Current Rating | 5 A |
| Voltage Rating AC | 115 V |
| Voltage Rating DC | 28 V |
| Operating Force | 0.83 N to 1.39 N |
| Termination Style | Wire |
| Tradename | Microswitch |
| Part # Aliases | MS25085-1 |
| Industry Aliases | 5930006464619, MS25085-1 |
| Subcategory | Switch Snap Action |
| Lead Time | 39 Days |
| Packaging | Bulk |
| Differential Travel | 0.004" (0.1mm) |
| Switch Function | On-Mom |
| Operating Force, Torque | 141.7gf |
| Mounting Type | Chassis Mount |
| Voltage Rating - AC | 115V |
| Operating Position | 0.330" (8.4mm) |
| Overtravel | 0.005" (0.13mm) |
| Operating Temperature | -55°C ~ 125°C |
| Actuator Type | Round (Pin Plunger) |
| Standard Package | 20 |
| Voltage Rating - DC | 28V |
| Pretravel | 0.030" (0.8mm) |
| Release Force | 28gf |
| Mechanical Life | 80,000 Cycles |
| Circuit | SPDT |
| rohs | Lead free / RoHS Compliant |
| ActuatorType | Plunger |
| BodyStyle | Subminiature |
| Brand/Series | SMSeries |
| ContactForm | SPDT |
| Current,Rating | 5Amps |
| Force,Operating | 3.0to5.0Oz. |
| Material,Casing | Phenolic |
| MountingHoleSize | 0.088" |
| NumberofPoles | 1 |
| NumberofPositions | 2 |
| SpecialFeatures | HighTemperature |
| Standards | ULListed,CSACertified |
| TemperatureRating | -55to+125°C |
| Termination | SolderLugs |
| Type | Basic |
| Voltage,Rating | 115VAC |
| Switch Type | MICRO SWITCHa?￠ Subminiature 12,7 mm H x 6,35 mm W x 20,3 mm L [0.5 in H x 0.25 in W x 0.8 in L] |
| Sealed | No |
| Ampere Rating | 5 A |
| Circuitry | SPDT |
| Operating Temperature | -55 ?°C to 125 ?°C [-67 ?°F to 257 ?°F] |
| Voltage | 115 Vac |
| Contact Type | Silver |
| Operating Force (OF) | 0,83 N to 1,39 N [3.0 oz to 5.0 oz] |
| Pretravel (PT) | 0,76 mm [0.030 in] max. |
| Overtravel (OT) | 0,13 mm [0.005 in] min. |
| Differential Travel (DT) | 0,10 mm [0.004 in] max. |
| Operating Position (OP) | 8,38 mm ?±0,38 mm [0.330 in ?±0.015 in] |
| Housing Material | General Purpose Phenolic |
| High Temperature | 204 ?°C [400 ?°F] |
| MIL Spec Number | MS25085-1 |
| Mounting Centers | 9,65 mm [0.38 in] |
| Tightening Torque | 0,22 N m [2.0 in lb] |
| Weight | 2,72 g [0.006 lb] |
| Package Height | 12,4 mm [0.49 in] |
| Package Width | 6,35 mm [0.25 in] |
| Package Length | 19,8 mm [0.78 in] |
| Recommended For | MIL-PRF-8805 application requirements, solder terminals |
| Comment | UL: E12252; CSA: LR41372 |
| UNSPSC Code | 39122209 |
| UNSPSC Commodity | 39122209 Snap switches |
| Series Name | SM |
| Product Line | Subminiature Basics |
