234A011-3-0
Heat Shrink Tubing and Sleeves D-SUB MINATURE RIGHT ANDLED BOOT
廠商型號:
234A011-3-0
芯天下內部編號:
35-234A011-3-0
生產廠商:
TE Connectivity / Raychem
描述:
Heat Shrink Tubing and Sleeves D-SUB MINATURE RIGHT ANDLED BOOT
產品類別:
Wire & Cable|Wire Protection & Management|Heat Shrink Tubing and Sleeves

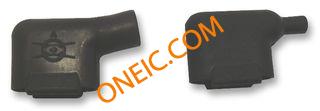

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Heat Shrink Tubing and Sleeves |
| RoHS | RoHS Compliant |
| Type | Boot, 90 Degree |
| Material | Polyolefin (PO) |
| Color | Black |
| Minimum Shrink Temperature | + 125 C |
| Recovered Diameter | 4.1 mm |
| Inside Diameter | 7.1 mm |
| Chemical Resistant | Yes |
| Flammability Rating | UL 224 |
| Maximum Temperature | + 135 C |
| Operating Temperature Range | - 55 C to + 135 C |
| Part # Aliases | 814458-000 |
| Comment | Contact Raychem for additional adhesive and/or cut off boot length information |
| Approved Standards | DEF Std 59-97 Issue 3 Type DA, MIL-I-81765/1 Class I, UL224 E85831 |
| Lead Free Solder Processes | Not relevant for lead free process |
| Adhesive Description | Adhesive Purchased Separately. |
| Angle | 90?° |
| Material Systems Code | 10 |
| Brand | Raychem |
| Connector Width (mm (in)) | 10.70 [0.421] |
| Application | General Purpose |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Cable Diameter Range (mm (in)) | 4.10 a?? 7.90 [0.161 a?? 0.311] |
| Product Type | D Subminiature Boot |
| Operating Temperature (?°C) | -55 a?? +135 |
| Adhesive Pre-Coating | Without |
| Connector Length (mm (in)) | 20.00 a?? 20.30 [0.787 a?? 0.799] |
| Material Code | 3 |
| RoHSELV Compliance History | Always was RoHS compliant |
| Family Name | 234A0 |
| Size | 11 |
| Boot Configuration | :D Sub |
| I.D. Supplied - Metric | :7.9mm |
| I.D. Supplied - Imperial | :0.311" |
| I.D. Recovered Max - Metric | :4.1mm |
| I.D. Recovered Max - Imperial | :0.161" |
| Shrink Ratio | :- |
| Shrink Tubing / Boot Material | :PO (Polyolefin) |
| Shrink Tubing / Boot Colour | :Black |
| Accessory Type | :Heat Shrink |
| Cable Diameter Max | :7.9mm |
| Cable Diameter Min | :4.1mm |
| Cable Exit Angle | :90° |
| Colour | :Black |
| Connector Shell Size | :11 |
| D Sub Shell Size | :DE |
| External Length / Height | :21.6mm |
| External Width | :10.7mm |
| For Use With | :DE-9 D-Sub Connectors |
| I.D. Max Recovered | :4.1mm |
| I.D. Supplied | :7.9mm |
| Length | :25.9mm |
| Operating Temperature Max | :-55°C |
| Operating Temperature Min | :135°C |
| Wall Thickness Recovered | :1.02mm |
| Weight (kg) | 0.0022 |
| Tariff No. | 85469090 |
| rohs | RoHS Compliant Part |
