245101-07-24.00

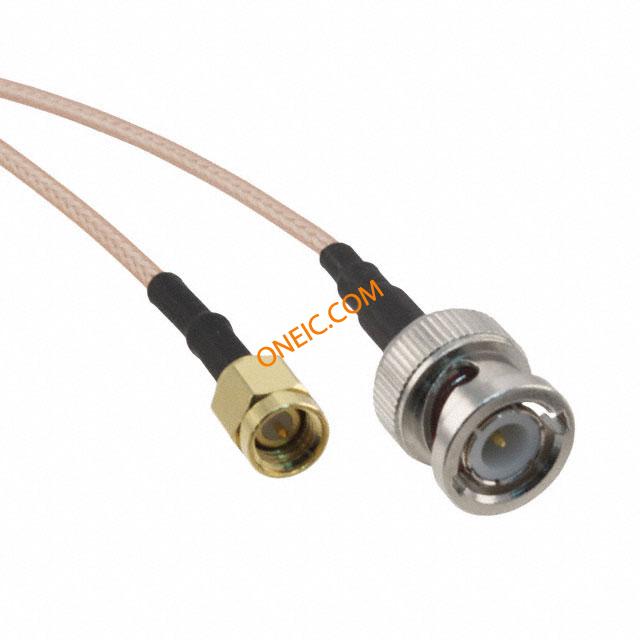

Cable Assembly RG142B/U 0.609m SMA to BNC PL-PL Crimp-Crimp Poly Bag
廠商型號:
245101-07-24.00
芯天下內部編號:
36-245101-07-24-00
生產廠商:
amphenol connex
描述:
Cable Assembly RG142B/U 0.609m SMA to BNC PL-PL Crimp-Crimp Poly Bag
產品類別:
Interconnect|Cable Assembly
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Connector Type | SMA to BNC |
| Cable Type | RG142B/U |
| Gender | PL-PL |
| Cable Length | 0.609 m |
| Termination Method | Crimp-Crimp |
| Standard Package | Bulk |
| Style | SMA to BNC |
| Features | Shielded |
| Length | 24.0" (609.6mm) |
| 1st Connector | SMA Male Plug |
| 2nd Connector | BNC Male Plug |
| rohs | Lead free by exemption / RoHS Compliant |
| Connector B Series | BNC |
| Connector A Body Style | Straight |
| Connector B Body Style | Straight |
| Connector B Polarity | Normal |
| Connector A Series | SMA |
| Color | Black |
| Connector B Gender | Plug (Male) |
| Impedance | 50 Ohms |
| Connector A Polarity | Normal |
| Connector A Gender | Plug (Male) |
| RoHS | RoHS Compliant By Exemption |
| Coaxial Cable Type | :RG142 |
| Cable Length - Imperial | :24" |
| Cable Length - Metric | :609.6mm |
| Connector Type A | :BNC Straight Plug |
| Connector Type B | :SMA Straight Plug |
| Jacket Color | :Black |
| Weight (kg) | 0 |
| Tariff No. | 85442000 |
| Type | Coaxial/RF |
