248BBHS0XB25103MA
Potentiometers 1/2SQ 1/8S 10Kohms Conductive Plastic
廠商型號:
248BBHS0XB25103MA
芯天下內部編號:
5-248BBHS0XB25103MA
生產廠商:
Vishay / Sfernice
描述:
Potentiometers 1/2SQ 1/8S 10Kohms Conductive Plastic
產品類別:
Passive Components|Potentiometers,Trimmers & Rheostats|Potentiometers
客戶編號:
規格書:
查看PDF

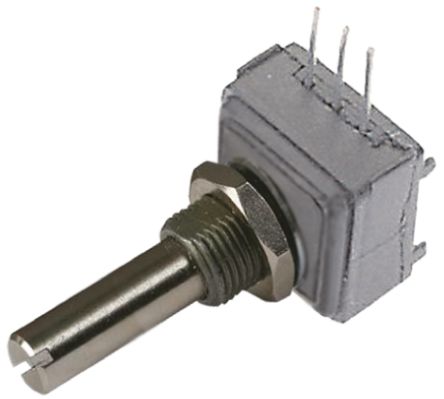

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Potentiometers |
| RoHS | RoHS Compliant By Exemption |
| Product | Potentiometer |
| Mounting Style | Panel |
| Number of Turns | 1 |
| Resistance | 10 kOhms |
| Element Type | Conductive Plastic |
| Shaft Type | Slotted |
| Termination Style | Pin |
| Power Rating | 500 mW (1/2 W) |
| Tolerance | 20 % |
| Operating Temperature Range | - 55 C to + 125 C |
| Series | 248 |
| Factory Pack Quantity | 50 |
| メーカ | Vishay |
| 製品カテゴリ | ポテンショメータ |
| 製品 | Potentiometer |
| 取り付け様式 | Panel |
| 回転數 | 1 |
| 抵抗 | 10 kOhms |
| 定數型 | Conductive Plastic |
| シャフト タイプ | Slotted |
| 末端様式 | Pin |
| 電力定格 | 500 mW (1/2 W) |
| 公差 | 20 % |
| 動作溫度範囲 | - 55 C to + 125 C |
| シリーズ | 248 |
| 工場パックの數量 | 50 |
| Unit Pack | 50 |
| MOQ | 100 |
| Depth | 12.7mm |
| Height | 13.11mm |
| Maximum Operating Temperature | +125°C |
| Maximum Resistance | 10kΩ |
| Minimum Operating Temperature | -55°C |
| Mounting Hole Diameter | 1/4in |
| Mounting Type | Panel Mount, Through Hole |
| Potentiometer Type | Linear |
| Shaft Diameter | 3.18 mm |
| Temperature Coefficient | ±1000ppm/°C |
| rohs | Compliant |
| Track Resistance | :10kohm |
| Track Taper | :Linear |
| No. of Turns | :1 |
| Shaft Length - Metric | :19.1mm |
| Resistance Tolerance | :± 20% |
| Potentiometer Mounting | :Through Hole |
| No. of Gangs | :1 |
| Adjustment Type | :Side |
| Dielectric Strength VAC | :750V |
| Electrical Angular Rotation Tolerance + | :5° |
| Electrical Angular Rotation Tolerance - | :5° |
| End Resistance | :2ohm |
| External Depth | :7.6mm |
| External Length / Height | :12.7mm |
| External Width | :12.7mm |
| Full Power Rating Temperature | :70°C |
| Insulation Resistance | :1000Mohm |
| Mechanical Angular Rotation Tolerance + | :5° |
| Mechanical Angular Rotation Tolerance - | :5° |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Proof Voltage | :750V |
| Resistor Element Material | :Conductive Plastic |
| Rotation Electrical Angle | :265° |
| Rotation Mechanical Angle | :295° |
| Temperature Coeff. + | :1000ppm/°C |
| Temperature Coeff. - | :1000ppm/°C |
| Terminal Type | :PCB Terminals |
| Weight (kg) | 0.004 |
| Tariff No. | 85334010 |
| Shaft diameter | 6.35mm |
| Power | 500mW |
| Shaft surface | smooth |
| Characteristics | linear |
| Track material | cermet |
| Potentiometer type | shaft |
| Multiplicity | 1 |
| Potentiometer kind | single turn |
| Gross weight | 5.6 g |
