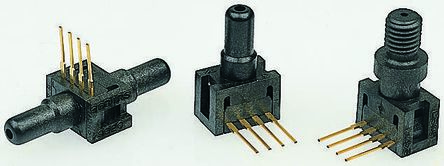

24PCCFA6G
Board Mount Pressure Sensors 0-15Psi Gauge 4-Pin
廠商型號:
24PCCFA6G
芯天下內部編號:
159-24PCCFA6G
生產廠商:
Honeywell
描述:
Board Mount Pressure Sensors 0-15Psi Gauge 4-Pin
產品類別:
Semiconductors|Sensor ICs|Board Mount Pressure Sensors
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Board Mount Pressure Sensors |
| RoHS | RoHS Compliant |
| Operating Pressure | +/- 15 psi |
| Pressure Type | Vacuum, Gauge |
| Output Type | Unamplified |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 10 V |
| Package / Case | SIP-4 / Dual Ports, Opposite Sides |
| Port Type | Single Axial Barbless |
| Maximum Operating Temperature | + 85 C |
| Minimum Operating Temperature | - 40 C |
| Port Size | 0.25 in |
| Factory Pack Quantity | 5 |
| Supply Voltage - Max | 12 VDC |
| Typical Operating Supply Voltage | 10 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 85 |
| Minimum Operating Temperature | -40 |
| Operating Pressure Range | 0psi to 15psi |
| Device Pressure Type | Gage |
| Maximum Operating Supply Voltage | 12 |
| Maximum Overload Pressure | 45psi |
| Pin Count | 4 |
| Lead Shape | Through Hole |
| Series Name | 24PC |
| Output Calibration | No |
| Measurement Type | Vacuum Gage, Gage |
| Pressure Range | +/- 15.0 psi |
| Maximum Overpressure | 45.0 psi |
| Response Time | 1 ms max. |
| Signal Conditioning | Unamplified |
| Supply Voltage | 10.0 Vdc typ., 12.0 Vdc max. |
| Subcategory | Industrial Pressure Sensor |
| Lead Time | 35 Days |
| Output | 165 mV ~ 285 mV |
| Termination Style | PC Pin |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 10V |
| Standard Package | 5 |
| Other Names | 480-2501 |
| Package/Case | 4-SIP Module |
| rohs | Lead free / RoHS Compliant |
| Accuracy | 0.2 % |
| Analogue Output | 165 → 285 mV |
| Maximum Pressure Reading | 15psi |
| Media Measured | Nitrogen Gas, Oxygen, Water |
| Minimum Pressure Reading | 0psi |
| Pressure Reading Type | Gauge |
| Terminal Type | Solder Tag |
| BodyStyle | Rectangular |
| Brand/Series | 24PC |
| Current,Switching | 2mA |
| Function | Pressure |
| MountingType | PCB |
| PrimaryType | Pressure |
| Range,Measurement | ±15PSI |
| SensingMode | Gage |
| Technology | Piezoresistive |
| Termination | Solder |
| Voltage,Supply | 12VDC |
| Overpressure | 45 psi max. |
| Temperature Compensation | No |
| Port Style | Straight |
| Package Type | Honeywell - 20PC |
| Linearity | ± 0.25% span typ., ± 1.0% span max. (P2 > P1) |
| Sensitivity | 15 mV/psi typ. |
| Full Scale Span | 225 mV typ. |
| Null Offset | 0 mV typ. |
| Null Shift over Temperature | ± 2.0 mV typ. |
| Span Shift Over Temperature | ± 5.0% span typ. |
| Repeatability & Hysteresis Error | ± 0.15 % span typ. |
| Input Resistance | 4.0 kOhm min., 5.0 kOhm typ., 6.0 kOhm max. |
| Output Resistance | 4.0 kOhm min., 5.0 kOhm typ., 6.0 kOhm max. |
| Shock | Qualification tested to 150 g |
| Vibration | MIL-STD-202 Method 213 (150 g half sine 11 ms) |
| Weight | 2 g [0.07 oz] |
| Storage Temperature | -55 °C to 100 °C [-67 °F to 212 °F] |
| Media Compatibility | Limited to media which will not attack polyetherimide, silicon, flourosilicone, silicone, EPDM and neoprene seals. |
| UNSPSC Code | 41111927 |
| UNSPSC Commodity | 41111927 Pressure Sensors |
| 輸出 | 165 mV ~ 285 mV |
| 系列 | 24PC |
| 端接樣式 | PC Pin |
| 工作壓力 | 15 PSI |
| 操作溫度 | -40°C ~ 85°C |
| 電壓 - 電源 | 10V |
| 壓力類型 | Gauge |
| 封裝/外殼 | 4-SIP Module |
| 電源電壓 | 10 V 直流 |
| 最高工作溫度 | +85°C |
| 模擬輸出 | 165 → 285 mV |
| 最低工作溫度 | -40°C |
| 壓力讀數類型 | 計量 |
| 最小壓力讀數 | 0psi |
| 精確度 | 0.2% |
| 輸出類型 | 非放大 |
| 介質測量 | 氮氣、氧、水 |
| 電氣連接 | 焊片 |
| 響應時間 | 1 ms |
| 最大壓力讀數 | 15psi |
