2791016

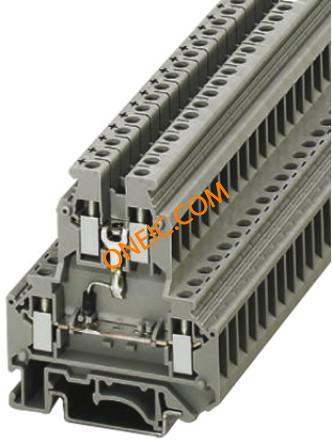

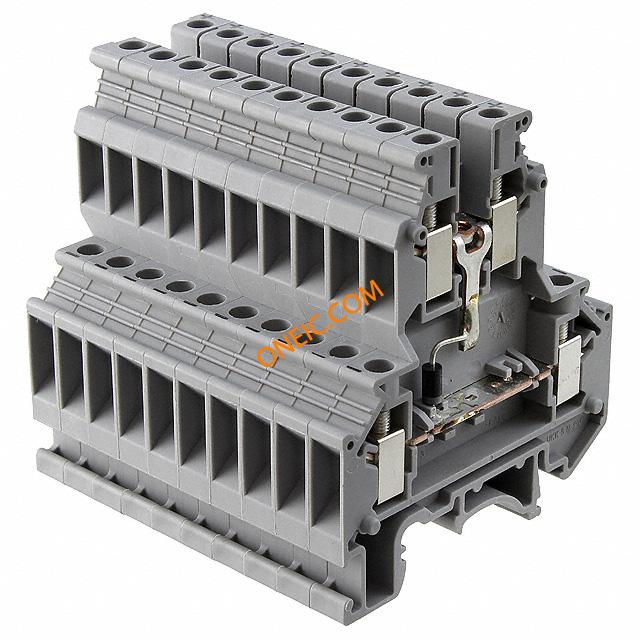

DIN Rail Terminal Blocks UKK 5-DIO/O-U
廠商型號:
2791016
芯天下內部編號:
295-2791016
生產廠商:
Phoenix Contact
描述:
DIN Rail Terminal Blocks UKK 5-DIO/O-U
產品類別:
Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE UKK
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 12-24 |
| Product Length | 56 |
| EU RoHS | Compliant |
| Product Depth | 6.2 |
| Gender | F |
| Termination Method | Screw |
| Product Height | 69.5 |
| Housing Material | Polyamide |
| Number of Contacts | 4 |
| Number of Rows | 4 |
| Maximum Voltage Rating | 320V |
| Maximum Current Rating | 32 |
| Type | Feed-Through Modular Terminal Blocks |
| Number of Levels | 2; Connected |
| Wire Gauge or Range - mm2 | 0.2-4mm2 |
| Color | Gray |
| Stripping Length | 8mm |
| Standard Package | 50 |
| Termination Style | Screw |
| Wire Gauge or Range - AWG | 10-26 AWG |
| Number of Positions | 4 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 32A |
| Voltage - IEC | 500V |
| Current - UL | 30A |
| Voltage - UL | 600V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 6.2mm |
| Features | Diode |
| rohs | Lead free / RoHS Compliant |
| Colour | Grey |
| Current Rating | 32A |
| Series | UKK |
| Voltage Rating | 500 V |
| Wire Size | 24 → 12 AWG |
| Factory Pack Quantity | 50 |
| Wire Gauge Max | 12 |
| Product Category | DIN Rail Terminal Blocks |
| Number of Positions / Contacts | 4 |
| Height | 67 mm |
| Mounting Style | DIN Rail |
| Width | 6.2 mm |
| Length | 56 mm |
| Flammability Rating | UL 94 V-0 |
| Wire Gauge Range | 24-12 |
| Tradename | CLIPLINE UK |
| Wire Gauge Min | 24 |
| Unit Weight | 0.577082 oz |
| RoHS | RoHS Compliant |
| 顏色 | 灰色 |
| 層數目 | 雙層 |
| 端接方法 | 螺釘 |
| 額定電流 | 32A |
| 線規格 | 24 → 12 AWG |
| 額定電壓 | 500 V |
| 系列 | UKK |
