3-1437664-5
Conn Barrier Strip 5 POS 9.53mm Solder ST Thru-Hole 20A/Contact
廠商型號:
3-1437664-5
芯天下內部編號:
35-3-1437664-5
生產廠商:
te connectivity / buchanan-rdi
描述:
Conn Barrier Strip 5 POS 9.53mm Solder ST Thru-Hole 20A/Contact
產品類別:
Interconnect|Connector Terminal Blocks
客戶編號:
規格書:
查看PDF

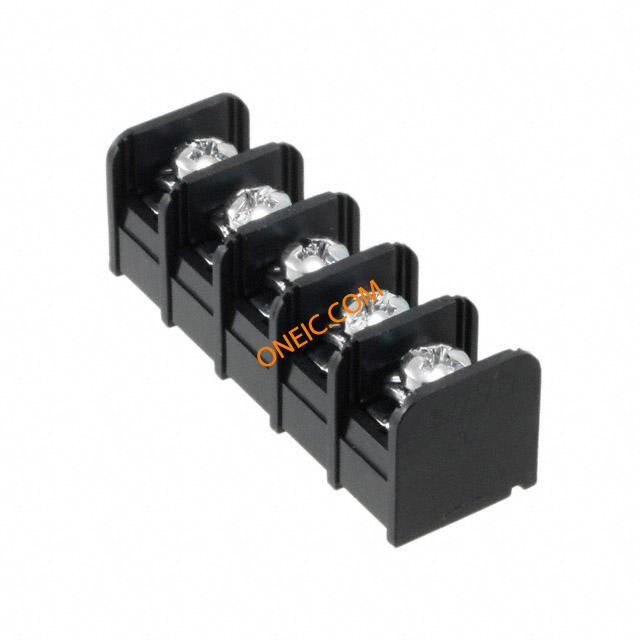

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Barrier Strip |
| Number of Contacts | 5 |
| Pitch | 9.53 mm |
| Termination Method | Solder |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Number of Rows | 1 |
| Housing Color | Black |
| Wire Size | 12-22 AWG |
| Standard Package | Bulk |
| Mounting Bushing | With |
| Mounting Insert | Without |
| Screw Head Type | Phil-Slot |
| Centerline | 9.53 |
| Number of Positions | 5 |
| Profile | Low |
| Lead Free Solder Processes | Wave solder capable to 260?°C / Wave solder capable to 240?°C / Wave solder capabl |
| Screw Plating | Zinc Chromate |
| Block Style | Flat |
| Brand | Buchanan |
| Mount Angle | Vertical |
| Top Hardware | Wire Clamp Combo Head |
| Screw Material | Steel |
| Product Type | Barrier Strip |
| Terminal Plating | Bright Tin |
| RoHSELV Compliance | RoHS compliant / ELV compliant |
| Terminal Material | Copper Alloy |
| Barrier Style | Single Row, Dual Barrier |
| Comment | Other options available upon request, consult our Product Information Center. / |
| Number of Levels | Single |
| Mounting Ears | Without |
| Mounting Options | None |
| Mounting Style | Direct (All Positions Filled) |
| Terminal Style | Printed Circuit Pin 4.60 [.181] |
| RoHSELV Compliance History | Always was RoHS compliant |
| Terminal Finish | Zinc |
| Current Rating | 20A |
| Mounting Type | Through Hole |
| Voltage Rating | 300V |
| Wire Gauge | 12-22 AWG |
| Top Termination | Screws with Captive Plate |
| Bottom Termination | PC Pin |
| Barrier Type | 2 Wall (Dual) |
| Number of Wire Entries | 5 |
| Packaging | Bulk |
| Material - Insulation | Polyamide (PA), Nylon |
| Terminal Block Type | Barrier Block |
| Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -40°C ~ 105°C |
| Number of Circuits | 5 |
| rohs | Lead free / RoHS Compliant |
| AgencyApprovals | ULRecognized,CSA |
| Brand/Series | NC6 |
| Current,Rating | 20A |
| NumberofPoles | 5 |
| NumberofRows | Single |
| PinSpacing | 0.375(9.53)In.(mm) |
| PrimaryType | Barrier |
| Voltage,Rating | 300V |
| Wire,AWG | 22-12 |
