廠商型號: 3006P-1-104LF

芯天下內部編號: 18-3006P-1-104LF

生產廠商:

bourns

描述: Res Cermet Trimmer 100K Ohm 10% 3/4W 15(Elec)Turn 2.36mm (20.57 X 4.83 X 6.35mm) Pin Thru-Hole Tube

產品類別: Resistor|Resistor Trimmers, Potentiometer and Rheostat

客戶編號:

規格書: 查看PDF

瀏覽次數: 5

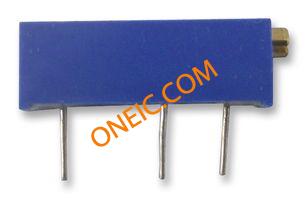

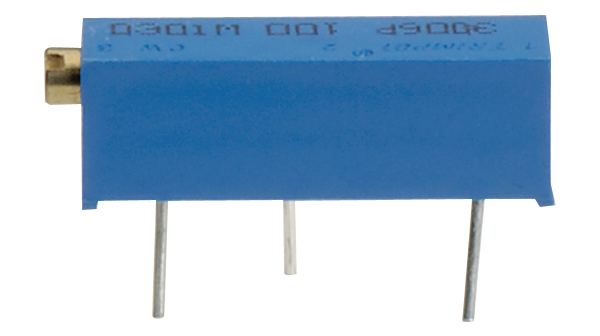

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0

庫存獲取中，請稍候....

輸入數量:

產品參數

參數類型	參數值
Type	Trimmer
Resistance Value	100 KOhm
Tolerance	10 %
Number of Turns	15(Elec) Turns
Power Rating	3/4 W
Mounting	Through Hole
Technology	Cermet
Operating Temperature	-55 to 125 °C
Shaft Diameter	2.36 mm
Standard Package	Bulk
Resistance Value	100K
EU RoHS	Compliant
Product Depth	4.83
Temperature Coefficient	±100
Termination Style	Pin
Product Length	20.57
Product Height	6.35
Packaging	Tube
Power Rating	0.75 (3/4)
Shaft Diameter	2.36
Number of Turns	15(Elec)
Resistance (Ohms)	100k
Mounting Type	Through Hole
Temperature Coefficient	±100ppm/°C

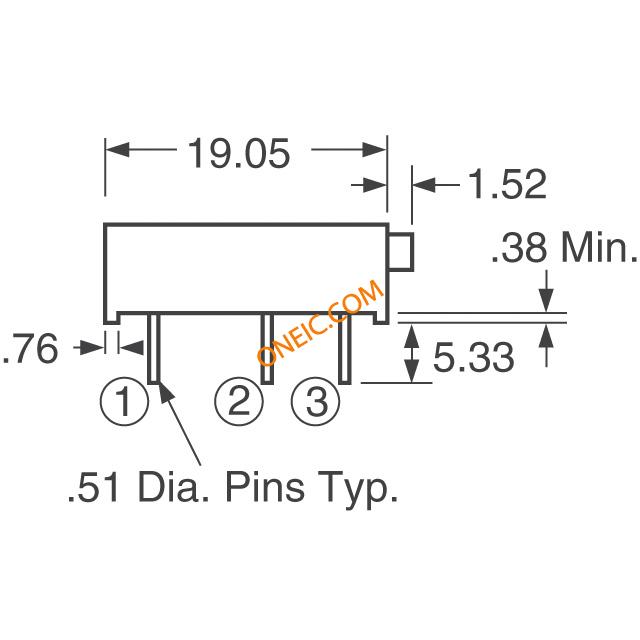

Size / Dimension	Rectangular - 0.750" L x 0.190" W x 0.250" H (19.05mm x 4.83mm x 6.35mm)
Resistive Material	Cermet
Power (Watts)	0.75W, 3/4W
Adjustment Type	Side Adjustment
rohs	Lead free / RoHS Compliant
Depth	4.83mm
Dimensions	20.57 x 4.83 x 6.35mm
Height	6.35mm
Length	20.57mm
Maximum Operating Temperature	+125°C
Maximum Resistance	100000Ω
Minimum Operating Temperature	-55°C
Factory Pack Quantity	100
Product	Trimmers
Product Category	Trimmer Resistors - Through Hole
Taper	Linear
Operating Temperature Range	- 55 C to + 125 C
Element Type	Cermet
Resistance	100 kOhms
Product Type	Multi-Turn
Series	3006P
Adjustment	Side Slot
RoHS	RoHS Compliant By Exemption
Operating Temp Range	-55C to 125C
Rad Hardened	No
Failure Rate	Not Required
Tolerance (+ or -)	10%
Mounting Style	Through Hole
Product Length (mm)	20.57 mm
Product Depth (mm)	4.83 mm
Product Height (mm)	6.35 mm
Shaft Diameter (mm)	2.36 mm
Product Diameter (mm)	Not Required mm
Military Standard	Not Required
Track Resistance	:100kohm
No. of Turns	:15
Resistance Tolerance	:± 10%
Potentiometer Mounting	:Through Hole
SVHC	:No SVHC (20-Jun-2013)
Contact Resistance Variation +	:1%
End Resistance	:2ohm
External Length / Height	:6.35mm
Full Power Rating Temperature	:25°C
Lead Diameter	:0.5mm
Operating Temperature Max	:125°C
Operating Temperature Min	:-55°C
Proof Voltage	:1000V
Resistor Element Material	:Cermet
Temperature Coeff. +	:100ppm/°C
Temperature Coeff. -	:100ppm/°C
Terminal Type	:PCB Terminals
Tolerance +	:10%
Tolerance -	:10%
Track Taper	:Linear
Voltage Rating	:400V
Voltage Rating V DC	:400V
Weight (kg)	0.00113
Tariff No.	85334010
Angle,Mechanical	Wiperidles
DielectricStrength	1000V
InsulationResistance	500VDC@100megaohms(Min)
LoadLife	1000hr
Material,Element	Cermet
MountingType	PCB
NumberofTurns	15
Power,Rating	0.75W
Resistance,Insulation	1000Megohms
Resolution	Infinite
RotationalLife	200Cycles
TemperatureCoefficient	±100ppm/°C
Temperature,Operating,Maximum	+125°C
Temperature,Operating,Minimum	-55°C
Termination	SolderablePins
Torque	5Oz./in.
Weight	0.04Oz.
Potentiometer standard	19mm
Power	750mW
Potentiometer type	mounting
Characteristics	linear
Min insulation resistance	1000MΩ
Track material	cermet
Potentiometer kind	multiturn
Gross weight	1.88 g
Operating temperature	-55...125°C
Temperature coefficient	100ppm/°C
Multiplicity	1

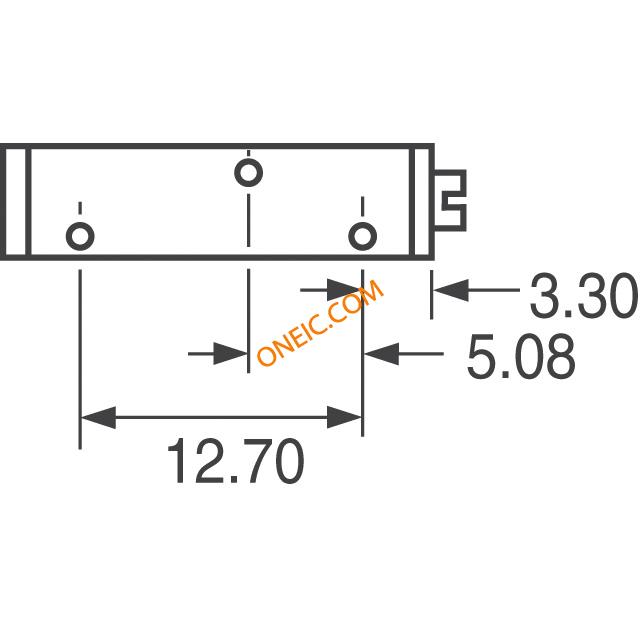

Terminal pitch	12.7x2.54mm
Collective package [pcs]	25
Number of electrical turns	15
spg	25
