3035288

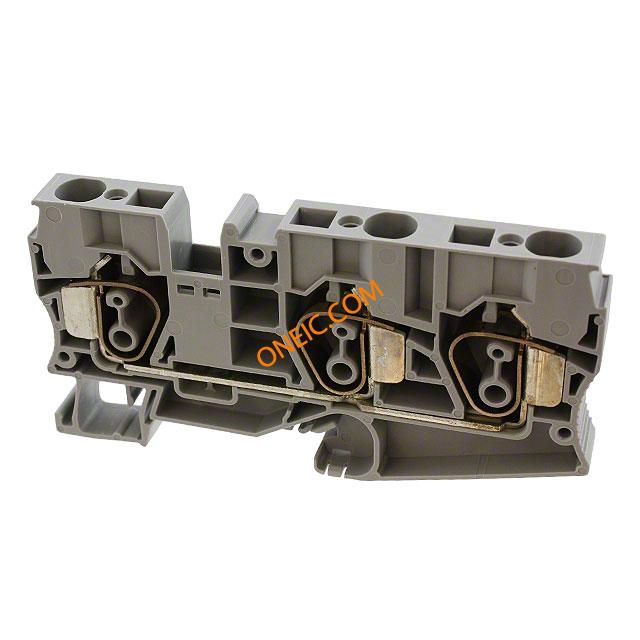

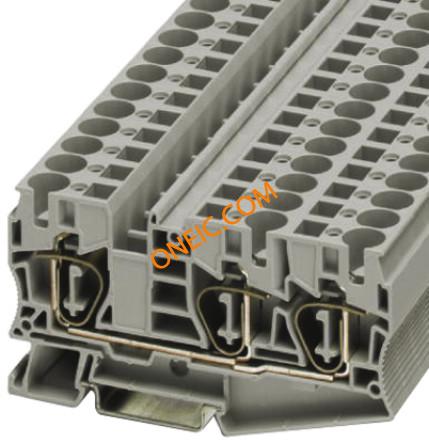

DIN Rail Terminal Blocks ST 10-TWIN
廠商型號:
3035288
芯天下內部編號:
295-3035288
生產廠商:
Phoenix Contact
描述:
DIN Rail Terminal Blocks ST 10-TWIN
產品類別:
Connectors, Interconnects|Terminal Blocks - Din Rail, Channel|CLIPLINE ST
所示圖像僅為示意圖。請從產品數據表中獲得準確的規(guī)格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Wire Size | 6-24 |
| Product Length | 97 |
| EU RoHS | Compliant |
| Number of Contacts | 3 |
| Product Depth | 10.2 |
| Mounting | Cable Mount |
| Body Orientation | Straight |
| Product Height | 57.8 |
| Housing Material | Polyamide |
| Gender | F |
| Maximum Voltage Rating | 800V |
| Maximum Current Rating | 65 |
| Type | Feed-Through Modular Terminal Blocks |
| Number of Levels | 1 |
| Wire Gauge or Range - mm2 | 0.2-16mm2 |
| Color | Gray |
| Stripping Length | 15mm |
| Standard Package | 25 |
| Termination Style | Push In, Spring |
| Wire Gauge or Range - AWG | 6-16 AWG |
| Number of Positions | 3 |
| Material - Insulation | Polyamide (PA), Nylon |
| Current - IEC | 57A |
| Voltage - IEC | 1000V |
| Current - UL | 60A |
| Voltage - UL | 600V |
| Material Flammability Rating | UL94 V-0 |
| Terminal - Width | 10.2mm |
| rohs | Lead free / RoHS Compliant |
| Colour | Grey |
| Current Rating | 65A |
| Series | ST |
| Termination Method | Spring Cage |
| Voltage Rating | 1000 V |
| Wire Size | 24 → 6 AWG |
| Factory Pack Quantity | 25 |
| Wire Gauge Max | 6 |
| Product Category | DIN Rail Terminal Blocks |
| Flammability Rating | UL 94 V-0 |
| Unit Weight | 1.382739 oz |
| Width | 10.2 mm |
| Length | 97 mm |
| Number of Positions / Contacts | 3 |
| Wire Gauge Range | 24-6 |
| Tradename | CLIPLINE ST |
| Wire Gauge Min | 24 |
| RoHS | RoHS Compliant |
| 顏色 | 灰色 |
| 層數目 | 單層 |
| 端接方法 | 彈簧籠 |
| 額定電流 | 65A |
| 線規(guī)格 | 24 → 6 AWG |
| 額定電壓 | 1000 V |
| 系列 | ST |
