3138-2-00-15-00-00-08-0
Contact SKT Solder ST Thru-Hole Bulk
廠商型號:
3138-2-00-15-00-00-08-0
芯天下內部編號:
258-3138-2-00-15-00-00-08-0
生產廠商:
Mill-Max
描述:
Contact SKT Solder ST Thru-Hole Bulk
產品類別:
Connectors, Interconnects|Terminals - PC Pin, Single Post Connectors|3138

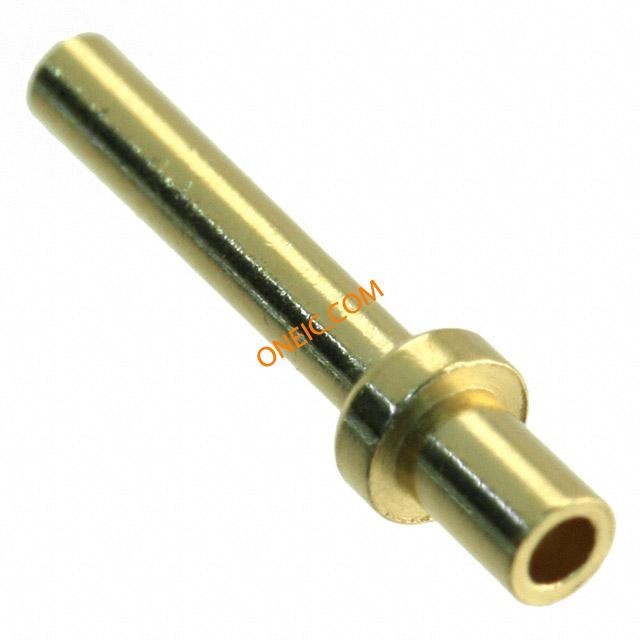

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Length | 10.34 |
| EU RoHS | Compliant |
| Shielded | No |
| Mounting | Through Hole |
| Body Orientation | Straight |
| Connector Type | Connector Socket |
| Product Height | 2.38 |
| Packaging | Bulk |
| Product Depth | 2.38 |
| Gender | SKT |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Contact Material | Brass Alloy |
| Length - Overall | 0.407" (10.34mm) |
| Flange Diameter | 0.094" (2.39mm) |
| Mounting Type | Through Hole |
| Mounting Hole Diameter | 0.043" (1.09mm) |
| Board Thickness | 0.062" (1.57mm) |
| Contact Finish | Gold |
| Pin Size - Below Board | 0.050" (1.27mm) Dia |
| Standard Package | 500 |
| Insulation | Non-Insulated |
| Termination | Swage |
| Contact Finish Thickness | 10μin (0.25μm) |
| Terminal Type | Single End |
| Length - Tail | 0.282" (7.16mm) |
| rohs | Lead free / RoHS Compliant |
| Product | Socket Pins |
| Product Category | IC & Component Sockets |
| RoHS | RoHS Compliant |
