3150W201P
3150W linear trimmer 200R 25% 250ppm
廠商型號:
3150W201P
芯天下內部編號:
35-3150W201P
生產廠商:
TE Connectivity
描述:
3150W linear trimmer 200R 25% 250ppm
產品類別:
Passive Components|Variable Resistors|Trimmer Resistors
客戶編號:
規格書:
查看PDF

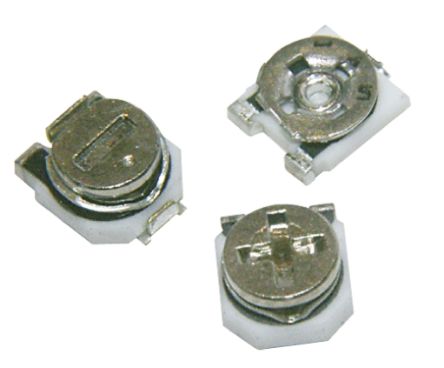

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Depth | 4.5mm |
| Dimensions | 3.8 x 4.5 x 1.4mm |
| Height | 1.4mm |
| Length | 3.8mm |
| Maximum Operating Temperature | +100°C |
| Maximum Resistance | 200Ω |
| Minimum Operating Temperature | -40°C |
| Mounting Type | Surface Mount |
| Number of Turns | 1 |
| Power Rating | 0.2W |
| Temperature Coefficient | ±250ppm/°C |
| Termination Style | Tab |
| Tolerance | ±25% |
| Part # Aliases | 1623913-5 |
| RoHS | RoHS Compliant |
| rohs | RoHS Compliant Part |
| 系列 | 3150 |
| 容差 | ±25% |
| 最高工作溫度 | +100°C |
| 安裝類型 | 表面貼裝 |
| 額定功率 | 0.2W |
| 高度 | 1.4mm |
| 接端樣式 | 安裝片 |
| 溫度系數 | ±250ppm/°C |
| 長度 | 3.8mm |
| 尺寸 | 3.8 x 4.5 x 1.4mm |
| 最低工作溫度 | -40°C |
| 轉數 | 1 |
| 深度 | 4.5mm |
| 方向 | 頂部調整 |
| Board Level Components | Y |
| 最大電阻 | 200Ω |
| 額定功率?(W) | .2 |
| 安裝方式 | 表面貼裝 |
| 尺寸?(mm) | 4.5 x 3.8 x 1.4 |
| 額定電壓?(V) | 50 |
| 端接類型 | 表面貼裝端子 |
| 注釋 | 開口框架 |
| 密封 | 否 |
| 電阻?(Ω) | 200 |
