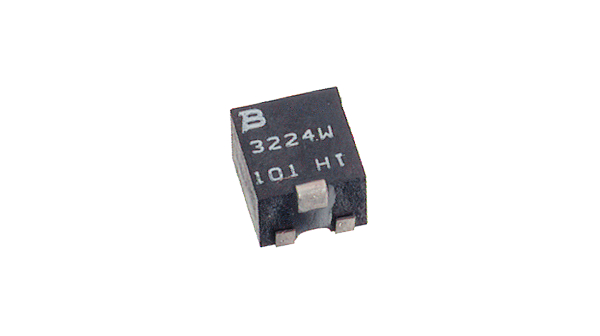

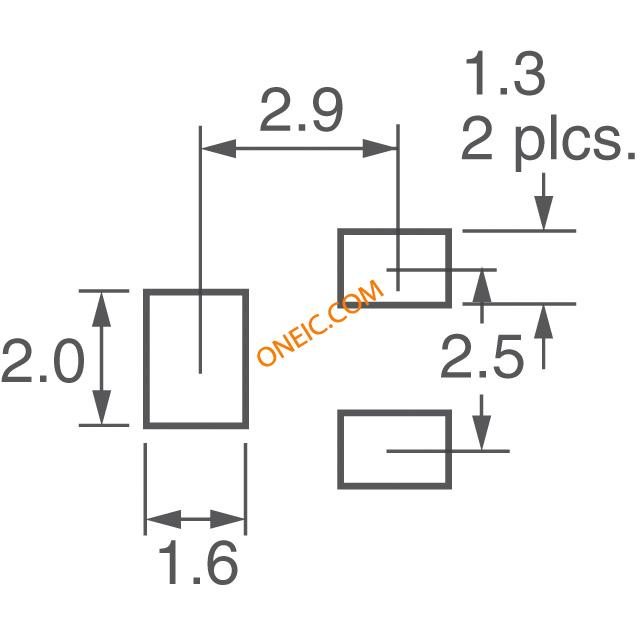

3224W-1-103E
Res Cermet Trimmer 10K Ohm 10% 1/4W 12(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R
廠商型號:
3224W-1-103E
芯天下內部編號:
18-3224W-1-103E
生產廠商:
bourns
描述:
Res Cermet Trimmer 10K Ohm 10% 1/4W 12(Elec)Turn 1.5mm (4.8 X 3.9 X 5.3mm) J-Hook SMD Embossed T/R
產品類別:
Resistor|Resistor Trimmers, Potentiometer and Rheostat
所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Trimmer |
| Resistance Value | 10 KOhm |
| Tolerance | 10 % |
| Number of Turns | 12(Elec) Turns |
| Power Rating | 1/4 W |
| Mounting | Surface Mount |
| Technology | Cermet |
| Operating Temperature | -65 to 150 °C |
| Shaft Diameter | 1.5 mm |
| Standard Package | Cut Tape |
| Packaging | Tape & Reel (TR) |
| Resistance (Ohms) | 10k |
| Mounting Type | Surface Mount |
| Termination Style | J Lead |
| Temperature Coefficient | ±100ppm/°C |

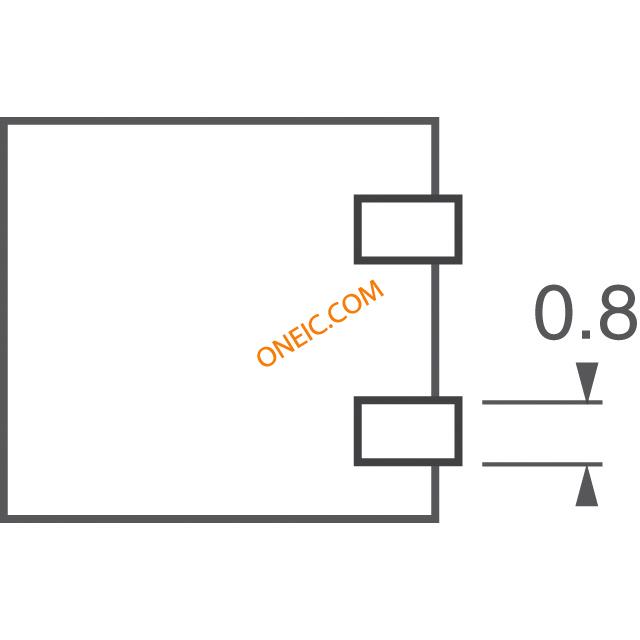

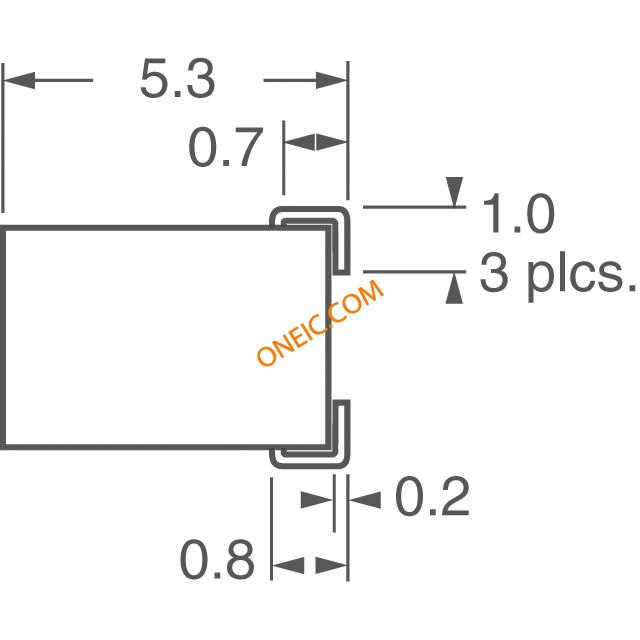

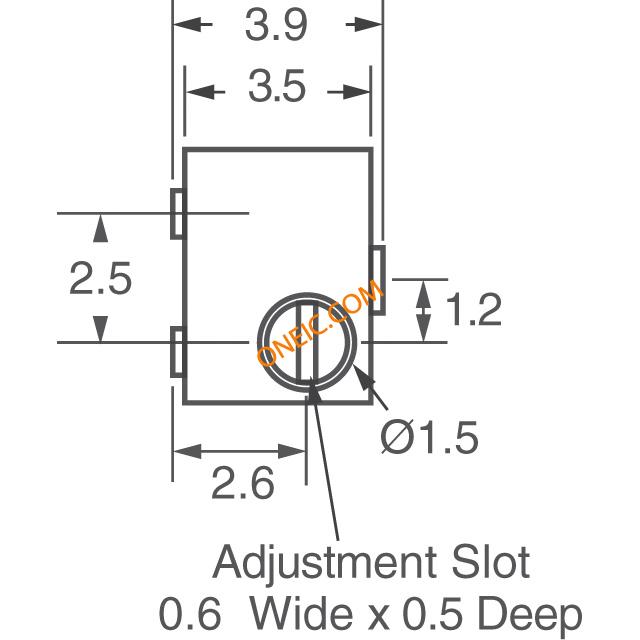

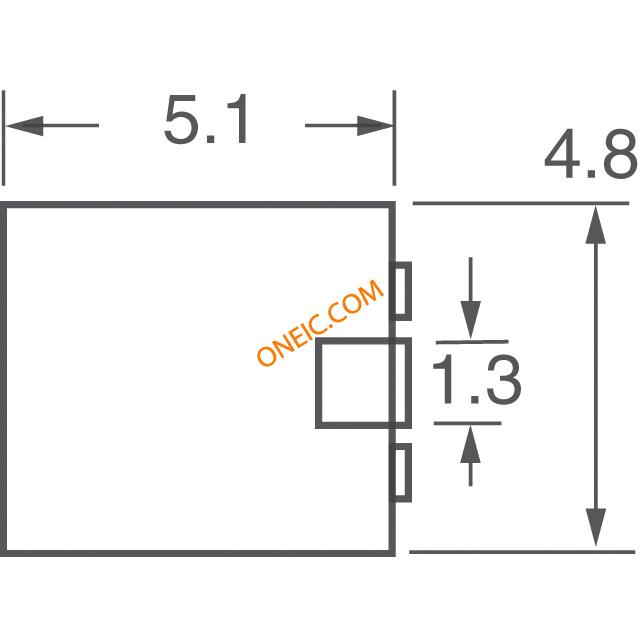

| Size / Dimension | Square - 0.190" L x 0.139" W x 0.200" H (4.80mm x 3.50mm x 5.10mm) |
| Resistive Material | Cermet |
| Power (Watts) | 0.25W, 1/4W |
| Adjustment Type | Top Adjustment |
| rohs | Lead free / RoHS Compliant |
| Other Names | 3224W-103EDKR |
| Depth | 3.9mm |
| Dimensions | 4.8 x 3.9 x 5.3mm |
| Height | 5.3mm |
| Length | 4.8mm |
| Maximum Operating Temperature | +150°C |
| Maximum Resistance | 10kΩ |
| Minimum Operating Temperature | -65°C |
| Factory Pack Quantity | 250 |
| Product | Trimmers |
| Product Category | Trimmer Resistors - SMD |
| Taper | Linear |
| Element Type | Cermet |
| Voltage Rating | 300 V |
| Operating Temperature Range | - 65 C to + 150 C |
| Resistance | 10 kOhms |
| Product Type | Multiturn |
| Series | 3224 |
| Adjustment | Top Slot |
| RoHS | RoHS Compliant By Exemption |
| Operating Temp Range | -65C to 150C |
| Rad Hardened | No |
| Failure Rate | Not Required |
| Tolerance (+ or -) | 10% |
| Mounting Style | Surface Mount |
| Product Length (mm) | 4.8 mm |
| Product Depth (mm) | 3.9 mm |
| Product Height (mm) | 5.3 mm |
| Shaft Diameter (mm) | 1.5 mm |
| Product Diameter (mm) | Not Required mm |
| DELETED | Compliant |
| Military Standard | Not Required |
| Track Resistance | :10kohm |
| No. of Turns | :11 |
| Resistance Tolerance | :± 10% |
| Potentiometer Mounting | :SMD |
| SVHC | :No SVHC (20-Jun-2013) |
| Contact Resistance Variation + | :3% |
| End Resistance | :100ohm |
| External Depth | :3.9mm |
| External Length / Height | :5.3mm |
| External Width | :4.8mm |
| Operating Temperature Max | :150°C |
| Operating Temperature Min | :-65°C |
| Proof Voltage | :600V |
| Reel Quantity | :250 |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :SMD |
| Tape Width | :16mm |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Terminal Type | :Surface Mount (SMD, SMT) |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| Voltage Rating V DC | :300V |
| Weight (kg) | 0.00029 |
| Tariff No. | 85334010 |
| DielectricStrength | 600VAC |
| InsulationResistance | 100Megohms(Min.) |
| LoadLife | 1000hrs.@85°C,0.25W |
| Material,Element | Cermet |
| MountingType | SMD |
| NumberofTurns | 11 |
| Power,Rating | 0.25W |
| Resistance,Insulation | 100Megohms |
| Resolution | Infinite |
| RotationalLife | 200Cycles |
| Standards | RoHSCompliant |
| TemperatureCoefficient | ±100ppm/°C |
| Temperature,Operating,Maximum | +150°C |
| Temperature,Operating,Minimum | -65°C |
| Termination | SMT |
| Torque | 180g-cm |
| Body dimensions | 4.8 x 4.6 x 3.7mm |
| Power | 250mW |
| Potentiometer type | mounting |
| Multiplicity | 1 |
| Temperature coefficient | 100ppm/°C |
| Potentiometer kind | multiturn |
| Gross weight | 0.3 g |
| Operating temperature | -65...150°C |
| Track material | cermet |
| Characteristics | linear |
| Collective package [pcs] | 500 |
| Number of electrical turns | 12 |
| spg | 500 |
