3290H-1-102

Res Wirewound Trimmer 1K Ohm 5% 1W 25(Elec)Turn 1.52mm (10.55 X 3.81 X 9.53mm) Pin Thru-Hole Tube

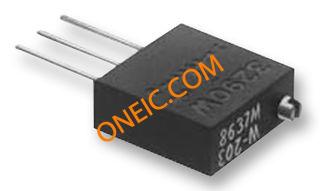

Thumbnail 3290H-1-102 Thumbnail 3290H-1-102 Thumbnail 3290H-1-102 Thumbnail 3290H-1-102
廠商型號: 3290H-1-102
芯天下內部編號: 18-3290H-1-102
生產廠商:
bourns bourns
描述: Res Wirewound Trimmer 1K Ohm 5% 1W 25(Elec)Turn 1.52mm (10.55 X 3.81 X 9.53mm) Pin Thru-Hole Tube
產品類別: Resistor|Resistor Trimmers, Potentiometer and Rheostat
客戶編號:
規格書: 查看PDF
瀏覽次數: 3

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Trimmer
Resistance Value 1 KOhm
Tolerance 5 %
Number of Turns 25(Elec) Turns
Power Rating 1 W
Mounting Through Hole
Technology Wirewound
Operating Temperature -65 to 150 °C
Shaft Diameter 1.52 mm
Standard Package Bulk
Product Category Trimmer Resistors - Through Hole
RoHS RoHS Compliant By Exemption
Product Trimmers
Product Type Multi-Turn
Taper Linear
Resistance 1 kOhms
Termination Style Radial
Adjustment Side Slot
Dimensions 9.53 mm W x 9.53 mm L
Element Type Wirewound
Operating Temperature Range - 65 C to + 150 C
Packaging Tube
Factory Pack Quantity 50
Resistance Value 1K
EU RoHS Compliant
Product Depth 3.81
Temperature Coefficient ±50
Product Length 10.55
Product Height 9.53
Power Rating 1
Shaft Diameter 1.52
Number of Turns 25(Elec)
Resistance (Ohms) 1k
Mounting Type Through Hole
Temperature Coefficient ±50ppm/°C
Size / Dimension Square - 0.375" L x 0.150" W x 0.375" H (9.53mm x 3.81mm x 9.53mm)
Resistive Material Wirewound
Power (Watts) 1W
Adjustment Type Side Adjustment
Other Names 3290H1102
rohs Lead free / RoHS Compliant
Operating Temp Range -65C to 150C
Rad Hardened No
Failure Rate Not Required
Tolerance (+ or -) 5%
Mounting Style Through Hole
Product Length (mm) 10.55 mm
Product Depth (mm) 3.81 mm
Product Height (mm) 9.53 mm
Shaft Diameter (mm) 1.52 mm
Product Diameter (mm) Not Required mm
DELETED Compliant
Military Standard Not Required
Track Resistance :1kohm
No. of Turns :25
Resistance Tolerance :± 5%
Potentiometer Mounting :Through Hole
SVHC :No SVHC (20-Jun-2013)
Operating Temperature Max :150°C
Operating Temperature Min :-65°C
Resistor Element Material :Wirewound
Series :3290
Track Taper :Linear
Weight (kg) 0.01
Tariff No. 85331000
