32SEPF68M
CAP ALUM 68UF 32V 20% RADIAL
廠商型號:
32SEPF68M
芯天下內部編號:
282-32SEPF68M
生產廠商:
Panasonic Electronic Components
描述:
CAP ALUM 68UF 32V 20% RADIAL
產品類別:
Capacitors|Aluminum - Polymer Capacitors|OS-CON, SEPF
客戶編號:
規格書:
查看PDF

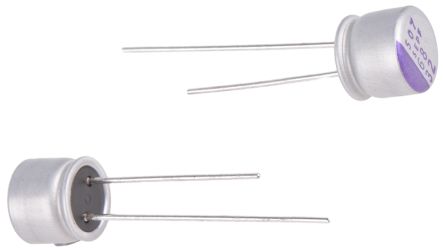

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Capacitance | 68μF |
| Construction | Radial |
| Diameter | 8mm |
| Dimensions | 8 x 7mm |
| Equivalent Series Resistance | 20mΩ |
| Height | 7mm |
| Lead Diameter | 0.45mm |
| Lead Pitch | 3.5mm |
| Leakage Current | 435 μA |
| Lifetime | 5000h |
| Maximum Operating Temperature | +105°C |
| Minimum Operating Temperature | -55°C |
| Mounting Type | Through Hole |
| Package/Case | E7 |
| Ripple Current | 3200mArms |
| Tolerance | ±20% |
| Tolerance Minus | -20% |
| Tolerance Plus | +20% |
| Voltage | 32 V |
| Case Diameter | 8 mm |
| Product | Organic Polymer Aluminum - Radial Capacitors |
| ESR | 25 mOhms |
| Voltage Rating | 32 V |
| Lead Spacing | 3.5 mm |
| Operating Temperature Range | - 55 C to + 105 C |
| Termination Style | Radial |
| Voltage Rating DC | 32 V |
| Packaging | Bulk |
| Case Length | 7 mm |
| Product Type | Can |
| Tradename | OSCON |
| Series | SEPF |
| Dissipation Factor DF | 10 |
| RoHS | RoHS Compliant |
| Standard Pack: | 200 |
| Product Range | :PANASONIC - SEPF Series |
| Capacitance Tolerance | :± 20% |
| Capacitor Terminals | :Radial Leaded |
| Life Time @ Temperature | :5000 hours @ 105°C |
| Operating Temperature Min | :-55°C |
| Operating Temperature Max | :105°C |
| Weight (kg) | 0.00082 |
| Tariff No. | 85322200 |
| rohs | Lead free / RoHS Compliant |
