33155

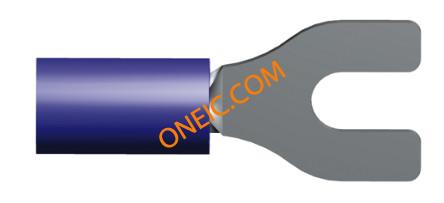

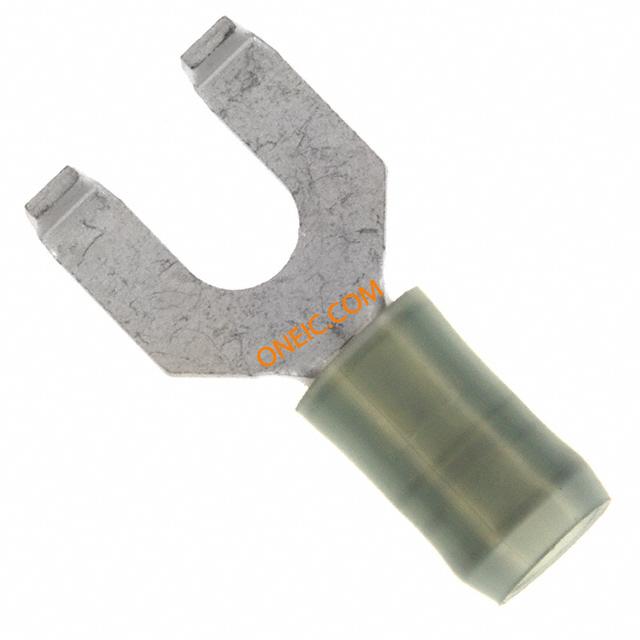

Flanged Spade Tongue Terminal 14-16AWG 21.08mm 10.57mm Tin Loose Piece

Thumbnail 33155 Thumbnail 33155 Thumbnail 33155 Thumbnail 33155
廠商型號: 33155
芯天下內部編號: 35-33155
生產廠商:
te connectivity / amp te connectivity / amp
描述: Flanged Spade Tongue Terminal 14-16AWG 21.08mm 10.57mm Tin Loose Piece
產品類別: Interconnect|Connector Terminals
客戶編號:
規格書: 查看PDF
瀏覽次數: 1

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Flanged Spade Tongue Terminal
Stud Size 4 mm
Wire Size 14-16 AWG
Standard Package Bulk
Product Category Terminals
RoHS RoHS Compliant
Product Fork Terminals
Series 331
Wire Gauge 16-14
Stud / Tab Size 8 (M4)
Insulation Insulated
Color Blue
Contact Plating Tin
Contact Material Copper
Insulation Material Nylon
Material Copper
Packaging Bulk
Factory Pack Quantity 1000
Voltage Rating 300 VAC
Insulation Support Insulation Support
Receptacle Style Straight
RoHSELV Compliance RoHS compliant, ELV compliant
Tongue Material Thickness (mm in) 0.84 [0.033]
Lead Free Solder Processes Not relevant for lead free process
Finish Tin
Brand AMP
Wire Range (mm (AWG)) 1.25-2.00?2 [16-14]
Insulation Diameter (mm (in)) 3.81 [.150] Max.
Body Style PIDG
Voltage (VAC) 300
Packaging Method Loose Piece
Terminal Shape Spade Tongue, Flanged
WireCable Type Regular Wire
Heavy Duty No
GovernmentIndustry Qualification No
Shape SPADE-024
Stud Diameter (mm in) 4.17 [0.164]
RoHSELV Compliance History Always was RoHS compliant
Wire Range (CMA) 2,050 a?? 5,180
Stud/Tab Size 8 Stud
Length - Overall 0.830" (21.08mm)
Length - Termination 0.404" (10.26mm)
Features Serrated Termination
Mounting Type Free Hanging (In-Line)
Terminal Type Flanged
Insulation Diameter 0.105" ~ 0.150" (2.67mm ~ 3.81mm)
Width - Outer Edges 0.416" (10.57mm)
Contact Finish Tin
Material - Insulation Polyamide (PA), Nylon
Tongue Inside Opening 0.171" (4.34mm)
Length - Ring Center to Termination 0.250" (6.35mm)
Termination Crimp
Other Names A99250
rohs Lead free / RoHS Compliant
Colour Blue
Overall Length 21.08mm
Width 10.57mm
Brand/Series PIDG
InsulationType Nylon
PrimaryType Spade
Size,Stud 4mm
SpecialFeatures Barrel
WireSize 16to14AWG
系列 PIDG
總體長度 21.08mm
絕緣材料 尼龍
最大電線尺寸 AWG 14AWG
絕緣 絕緣
觸點材料 銅色
寬度 10.57mm
最小電線尺寸 AWG 16AWG
觸點電鍍 錫
顏色 藍色
螺栓尺寸 M4
