3782-10P-270A
Flat Cables
廠商型號:
3782-10P-270A
芯天下內部編號:
504-3782-10P-270A
生產廠商:
3M
描述:
Flat Cables
產品類別:
Cables & Wires|Ribbon & Flat Cable|Twisted Ribbon Cable

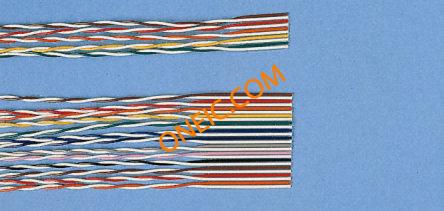

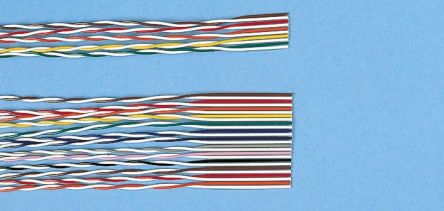

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| American Wire Gauge | 28 |
| Cable Shape | Ribbon |
| Capacitance | 48.5 pF/m |
| Characteristic Impedance | 137 Ω |
| Conductor Strand Type | Stranded |
| Core Strands | 7/36 |
| Number of Pairs | 10 |
| Number of Strands | 7 |
| Number of Ways | 20 |
| Pitch | 1.27mm |
| Reel Length | 30m |
| Screened/Unscreened | Unscreened |
| Sheath Colour | Pink/White |
| Size of Strands | 36 AWG |
| Voltage Rating | 300 V |
| Width | 24.4 mm |
| No. of Conductors | :20 |
| Pitch Spacing | :1.27mm |
| Conductor Size AWG | :28AWG |
| Jacket Material | :PVC (Polyvinyl Chloride) |
| Jacket Colour | :Multiple |
| No. of Pairs | :10 |
| Weight (kg) | 0.0397 |
| Tariff No. | 85444995 |
| Reel Length (Imperial) | :100ft |
| Reel Length (Metric) | :30.5m |
| Cable Type | :Twist to Flat |
