4-160256-2
Quick Disconnect Terminal 13-17AWG RCP 19mm 7.6mm Nickel Strip
廠商型號:
4-160256-2
芯天下內部編號:
35-4-160256-2
生產廠商:
te connectivity / amp
描述:
Quick Disconnect Terminal 13-17AWG RCP 19mm 7.6mm Nickel Strip
產品類別:
Interconnect|Connector Terminals

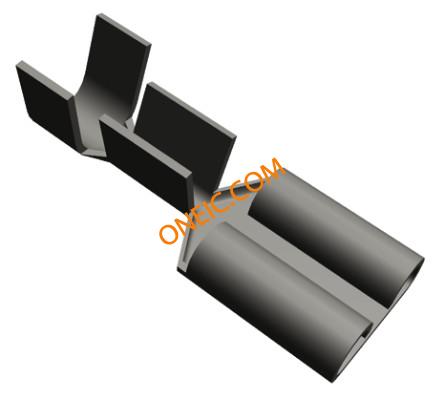

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Terminals |
| RoHS | RoHS Compliant |
| Product | Faston Terminals |
| Series | 250 |
| Wire Gauge | 17-13 |
| Insulation | Not Insulated |
| Gender | Female |
| Contact Plating | Nickel |
| Contact Material | Steel |
| Termination Style | Crimp |
| Material | Steel |
| Mounting Method | Wire |
| Packaging | Reel |
| Factory Pack Quantity | 5000 |
| Wire Range (mm AWG) | 1.00-2.50?2 [17-13.5] |
| Tab Fit (mm in) | 6.35 x 0.81 [.250 x .032] |
| Insulation Support | Insulation Support |
| Weld Tab | Without |
| RoHSELV Compliance | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| Finish | Nickel |
| Brand | AMP |
| UL Rating | Listed |
| Insulation Diameter (mm (in)) | 3.00-4.29 [.118-.169] |
| Line | Premier |
| Product Type | Receptacle |
| Comment | Versions according to DIN 46247, Part 3 |
| For Hermetic Header Tab | Yes |
| CSA Certified | Yes |
| Packaging Method | Strip |
| Packaging Quantity | 5,000/Reel |
| WireCable Type | Stranded |
| Insertion Force | Normal |
| Receptacle Style | Straight |
| Crimp Type | F-Crimp |
| RoHSELV Compliance History | Always was RoHS compliant |
| Tab Thickness | 0.032" (0.81mm) |
| Tab Width | 0.250" (6.35mm) |
| Mounting Type | Free Hanging (In-Line) |
| Length - Overall | 0.748" (19.00mm) |
| Contact Finish | Nickel |
| Insulation Diameter | 0.118" ~ 0.169" (3.00mm ~ 4.29mm) |
| Standard Package | 5,000 |
| Termination | Crimp |
| Terminal Type | Standard |
| Tab Length | 0.303" (7.70mm) |
| rohs | Lead free / RoHS Compliant |
| Other Names | A107192CT |
| Connector Type | Power Connector |
| Length | 19mm |
| Wire Size | 17 → 13 AWG |
| Mounting Angle | Straight |
| Rad Hardened | No |
| Tab Size | 5.14 mm? |
| Body Material | Steel |
| Body Plating | Nickel |
| Product Length (mm) | 19 mm |
| Product Depth (mm) | 7.6 mm |
| Insulator Colour | :- |
| Termination Method | :Crimp |
| Stud/Tab Size | :6.35mm x 0.81mm |
| Wire Size AWG Min | :17AWG |
| Wire Size AWG Max | :13AWG |
| Insulator Material | :- |
| Wire Size (AWG) | :17AWG to 13AWG |
| Wire Size Range (AWG) | :13 AWG |
| Weight (kg) | 0.004 |
| Tariff No. | 85369010 |
| Electrical mounting | crimped |
| Width | 6.3mm |
| Multiplicity | 10 |
| Spatial orientation | straight |
| Thickness | 0.8mm |
| Gross weight | 0.81 g |
| Ferrule variant | non-insulated |
| Terminal kind | female |
| Wire cross section | 1...2.5mm2 |
| Contact plating | nickel plated |
| Collective package [pcs] | 5000 |
| Terminal type | flat |
| spg | 5000 |
