40VSK6
Power Line Filters 40A STUD TERMINAL FLANGE MOUNT
廠商型號:
40VSK6
芯天下內部編號:
35-40VSK6
生產廠商:
TE Connectivity / Corcom
描述:
Power Line Filters 40A STUD TERMINAL FLANGE MOUNT
產品類別:
Filters|Line Filters|SK, Corcom

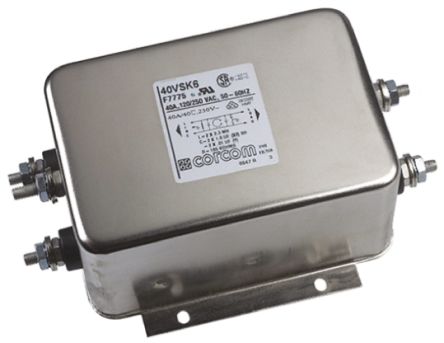

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Industry Aliases | 1-6609036-6 |
| Subcategory | Power Line Filter |
| Lead Time | 20 Days |
| Voltage - Rated AC | 250V |
| Mounting Type | Chassis |
| Approvals | CSA, UL, VDE |
| Termination Style | Threaded Post (10-32) |
| Current | 40A |
| Applications | General Purpose |
| Operating Temperature | -10°C ~ 40°C |
| Standard Package | 4 |
| Filter Type | Single Phase |
| Configuration | Single Stage |
| Frequency - Operating | 50 ~ 60Hz |
| rohs | Lead free / RoHS Compliant |
| Accessory Type | RFI Filter |
| Current Rating | 40 A |
| Depth | 55.4mm |
| Electrical Phase | 1 |
| Length | 152.4mm |
| Width | 79.25mm |
| Factory Pack Quantity | 4 |
| Product Category | AC Power Line Filters |
| Voltage Rating | 250 V |
| Series | SK |
| Mounting Style | Flange |
| Frequency | 50 Hz, 60 Hz |
| Leakage Current | 1.25 mA |
| Part # Aliases | 1-6609036-6 |
| RoHS | RoHS Compliant |
| Brand/Series | Corcom/SKSeries |
| Current,Leakage | 0.75/1.25mA |
| Current,Rating | 40A |
| CutOut,Panel | 32.9×23.1mm |
| Dimensions | 55.4mmH×79.25mmW×152.4mmL |
| FilterType | EMI,RFI |
| Frequency,Operating | 50/60Hz |
| HipotRating,LinetoGround | 2250VDC |
| HipotRating,LinetoLine | 1450VDC |
| MountingType | Flange |
| Phase | 1 |
| PrimaryType | GeneralPurpose |
| TycoPartNumber | 1-6609036-6 |
| Type | RFILine |
| Voltage,Operating | 250VAC |
| Voltage,Rating | 250VAC |
| 電氣相位 | 1 |
| 附件類型 | RFI 濾波器 |
| 額定電流 | 40 A |
| 尺寸 | 152.4 x 79.25 x 55.4 mm |
| 深度 | 55.4mm |
| 長度 | 152.4mm |
| 寬度 | 79.25mm |
