435640-4
Switch DIP SPST 6 Raised Rocker PC Pins 2.54mm Thru-Hole
廠商型號:
435640-4
芯天下內部編號:
35-435640-4
生產廠商:
te connectivity / amp
描述:
Switch DIP SPST 6 Raised Rocker PC Pins 2.54mm Thru-Hole
產品類別:
Switches and Relays|Switches|DIP Switch

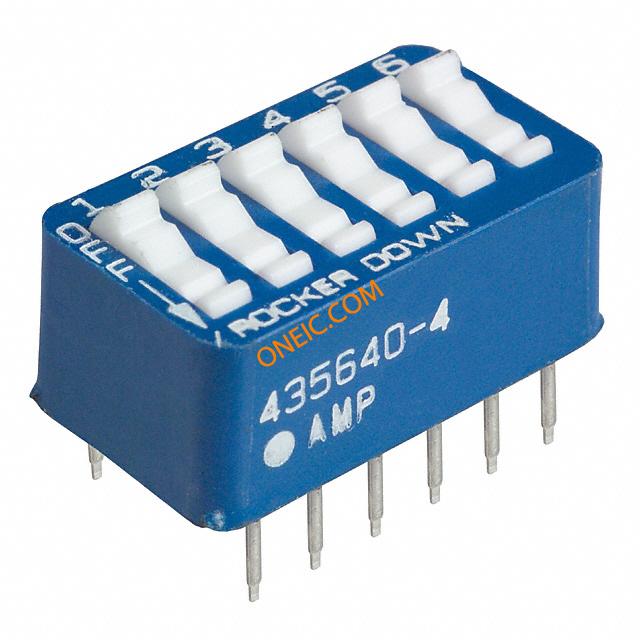

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Number of Positions | 6 |
| Mounting | Through Hole |
| Pole Throw Configuration | SPST |
| Actuator Style | Raised Rocker |
| Terminal Type | PC Pins |
| Standard Package | Rail / Tube |
| Comment | All switches are bottom sealed. |
| RoHSELV Compliance | ELV compliant |
| Lead Free Solder Processes | Wave solder capable to 240?°C, Wave solder capable to 260?°C, Wave solder c |
| Auto-Insertable | No |
| Series | 7100 |
| Brand | Alcoswitch |
| Contact Material | Copper Alloy |
| Number of Switches | 6 |
| Packaging Quantity | 18 |
| Centerline (mm in) | 2.54 [0.100] |
| Housing Material | Polyester |
| Configuration (Pole-Throw) | Single Pole - Single Throw |
| PCB Mount Style | Thru Hole |
| Housing Color | Blue |
| Sealed | No |
| Contact Mating Area Plating Material | Gold (30) over Nickel (50) |
| Product Type | DIP Switch |
| RoHSELV Compliance History | Always was ELV compliant |
| Termination (Solder) Post Length (mm (in)) | 3.56 [0.140] |
| Washable | No |
| Actuator Type | Rocker |
| Mounting Type | Through Hole |
| Circuit | SPST |
| Contact Rating @ Voltage | 0.06A @ 5VDC |
| Orientation | Top Actuated |
| Actuator Level | Raised |
| rohs | Lead free / RoHS non-compliant |
| Factory Pack Quantity | 18 |
| Product Category | DIP Switches / SIP Switches |
| Terminal Pitch | 2.54 mm |
| Switch Type | DIP |
| Contact Form | SPST |
| Termination Style | Through Hole |
| Contact Plating | Gold |
| Actuator | Rocker |
| RoHS | No |
| SubCategory | DIP Switch |
| MainCategory | Switches |
| 端子接觸部電鍍厚度?(μin) | 30 |
| 高度 | 8.64?mm?[?.34?in?] |
| 封裝方法 | 管 |
| 端子基材 | 銅合金 |
| スイッチ數 | 6 |
| 長度 | 17.27?mm?[?.68?in?] |
| UL 易燃性等級 | UL 94V-0 |
| 工作溫度范圍?(°C) | -55 – 105 |
| 中心線 | 2.54?mm?[?.1?in?] |
| 開關類型 | DIP |
| 安裝類型 | 通孔 |
| 額定電壓?(VDC) | 40 |
| 端子接觸部電鍍材料 | 金 |
| 殼體顏色 | 藍色 |
| 安裝角度 | 垂直 |
| 端子電流額定值?(A) | 1 |
| ロー プロファイル | 否 |
| はんだテール端子のめっき | 鎳打底鍍金 |
| 密封 | 否 |
| 外殼材料 | 聚酯 GF |
| 端接柱體長度 | 3.56?mm?[?.14?in?] |
| 產品類型 | 開關 |
| 構成（Pole-Throw) | 單極 - 單擲 |
| 針數 | 6 |
| 封裝數量 | 18 |
| 注釋 | 所有開關末端密封。 |
| アクチュエータのスタイル | 搖臂（頂致動） |
