440LD10-R
Cap Ceramic 0.001uF 400VAC/500VAC Y5U 20% (9.3 X 5.6mm) Radial 9.5mm Bulk
廠商型號:
440LD10-R
芯天下內部編號:
5-440LD10-R
生產廠商:
vishay / sprague
描述:
Cap Ceramic 0.001uF 400VAC/500VAC Y5U 20% (9.3 X 5.6mm) Radial 9.5mm Bulk
產品類別:
Capacitor|Capacitor Ceramic Singlelayer

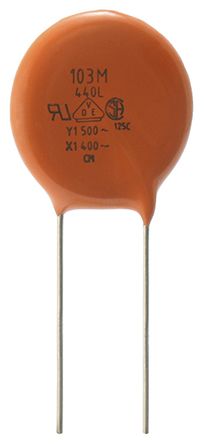

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package/Case | 9.3(Max) X 5.6(Max) |
| Mounting | Through Hole |
| Capacitance Value | 0.001 uF |
| Voltage | 400|500 Vac |
| Tolerance | 20 % |
| Dielectric | Y5U |
| Lead Pitch For Radial | 9.5 mm |
| Product Diameter | 9.3(Max) mm |
| Operating Temperature | -30 to 125 °C |
| Termination Style | Radial |
| Product Depth | 5.6(Max) mm |
| Standard Package | Bulk |
| Product Category | Ceramic Disc Capacitors |
| RoHS | RoHS Compliant By Exemption |
| Capacitance | 1000 pF |
| Voltage Rating | 400 VAC |
| Operating Temperature Range | - 30 C to + 125 C |
| Dissipation Factor DF | 2 |
| Product | Ceramic Disc Capacitors - AC Line Rated |
| Capacitance - nF | 1 nF |
| Capacitance - uF | 0.001 uF |
| Case Diameter | 9.3 mm |
| Lead Spacing | 9.53 mm |
| Packaging | Bulk |
| Series | 440L |
| Factory Pack Quantity | 250 |
| Temperature Coefficient / Code | Y5U |
| Lead Diameter | 0.81 |
| Type | Ceramic Disc |
| EU RoHS | Compliant |
| Suppression Class | X1/Y1 |
| Product Diameter | 9.3(Max) |
| Product Depth | 5.6(Max) |
| Seated Plane Height | 12.5(Max) |
| Lead Pitch For Radial | 9.5 |
| Maximum Operating Temperature | 125 |
| Unit Pack | 250 |
| MOQ | 1000 |
| Product Range | :VISHAY - 440L Series |
| Capacitance Tolerance | :± 20% |
| Dielectric Characteristic | :Y5U |
| Capacitor Terminals | :Radial Leaded |
| Operating Temperature Min | :-30°C |
| Operating Temperature Max | :125°C |
| No. of Pins | :2 |
| Weight (kg) | 0.001 |
| Tariff No. | 85364110 |
