4N35-360E
Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD Tube
廠商型號:
4N35-360E
芯天下內部編號:
9-4N35-360E
生產廠商:
avago technologies
描述:
Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 6-Pin PDIP SMD Tube
產品類別:
Optoelectronics|OptoCouplers|Transistor and Photovoltaic Output PhotoCouplers

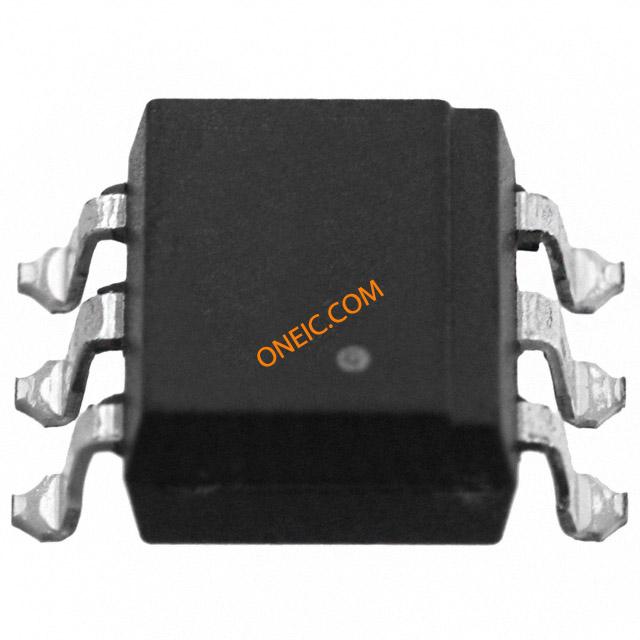

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Package | 6PDIP SMD |
| Output Type | DC |
| Number of Channels per Chip | 1 |
| Typical Forward Voltage | 1.2 V |
| Maximum Collector Current | 100 mA |
| Maximum Collector Emitter Voltage | 30 V |
| Maximum Rise Time | 10 us |
| Maximum Forward Voltage | 1.5 V |
| Minimum Isolation Voltage | 3550 Vrms |
| Maximum Collector Emitter Saturation Voltage | 300 mV |
| Maximum Input Current | 60 mA |
| Maximum Power Dissipation | 350 mW |
| Maximum Reverse Voltage | 6 V |
| Operating Temperature | -55 to 100 °C |
| Standard Package | Rail / Tube |
| Product Category | Transistor Output Optocouplers |
| RoHS | RoHS Compliant |
| Input Type | DC |
| Isolation Voltage | 3550 Vrms |
| Maximum Forward Diode Voltage | 1.5 V |
| Maximum Input Diode Current | 60 mA |
| Maximum Operating Temperature | + 100 C |
| Minimum Operating Temperature | - 55 C |
| Package / Case | PDIP-6 Gull Wing |
| Packaging | Tube |
| Maximum Fall Time | 10 us |
| Maximum Reverse Diode Voltage | 6 V |
| Output Device | NPN Phototransistor |
| Factory Pack Quantity | 65 |
| Maximum Input Current | 60 |
| Package Width | 6.5 |
| Mounting | Surface Mount |
| Minimum Isolation Voltage | 3550 |
| PCB | 6 |
| Maximum Fall Time | 10 |
| Maximum Power Dissipation | 350 |
| Maximum Collector Emitter Saturation Voltage | 300 |
| EU RoHS | Compliant |
| Maximum Reverse Voltage | 6 |
| Maximum Collector Emitter Voltage | 30 |
| Minimum Operating Temperature | -55 |
| Supplier Package | PDIP SMD |
| Standard Package Name | PDIP SMD |
| Maximum Operating Temperature | 100 |
| Maximum Rise Time | 10 |
| Maximum Forward Voltage | 1.5 |
| Package Length | 7.3 |
| Pin Count | 6 |
| Package Height | 3.5 |
| Maximum Collector Current | 100 |
| Lead Shape | Gull-wing |
| Current - Output / Channel | 100mA |
| Current Transfer Ratio (Min) | 100% @ 10mA |
| Mounting Type | Surface Mount |
| Vce Saturation (Max) | 300mV |
| Voltage - Output | 30V |
| Number of Channels | 1 |
| Current - DC Forward (If) | 60mA |
| Voltage - Isolation | 3550Vrms |
| Package/Case | 6-SMD, Gull Wing |
| rohs | Lead free / RoHS Compliant |
| Fall Time | 10 us |
| Vr - Reverse Voltage | 6 V |
| If - Forward Current | 60 mA |
| Brand | Broadcom / Avago |
| Configuration | 1 Channel |
| Vf - Forward Voltage | 1.5 V |
| Length | 7.3 mm |
| Height | 3.5 mm |
| Pd - Power Dissipation | 350 mW |
| Rise Time | 10 us |
