4NT1-3
Toggle Switches 4 Pole 2 Positions Standard Lever
廠商型號:
4NT1-3
芯天下內部編號:
159-4NT1-3
生產廠商:
Honeywell
描述:
Toggle Switches 4 Pole 2 Positions Standard Lever
產品類別:
Electromechanical|Switches|Toggle Switches
客戶編號:
規格書:
查看PDF

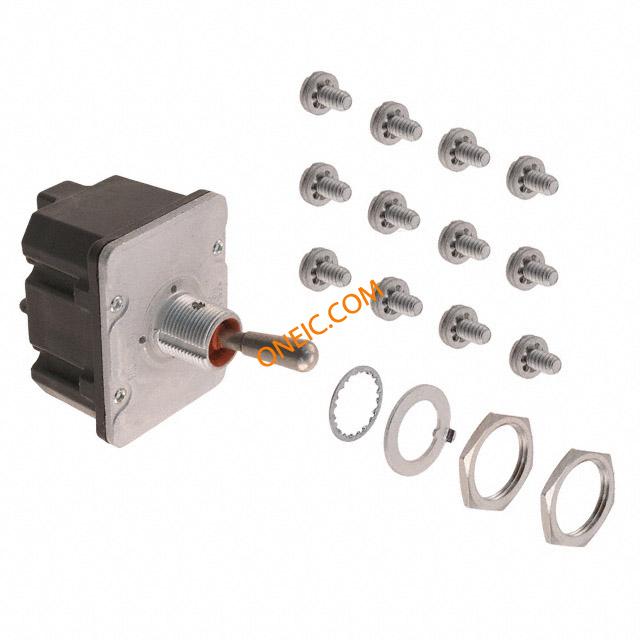

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Product Category | Toggle Switches |
| RoHS | RoHS Compliant |
| Contact Form | 4PDT |
| Switch Function | ON - ON |
| Termination Style | Screw |
| Mounting Style | Panel |
| Illumination | Non-Illuminated |
| Actuator | Lever |
| Bushing Size | 15/32-32 |
| Actuator Style | Round Lever |
| Product Length | 33.4 |
| EU RoHS | Compliant |
| Maximum Operating Temperature | 71 |
| Product Depth | 41.6 |
| Pole Throw Configuration | 4PDT |
| Mounting | Panel Mount with Threads |
| Maximum AC Voltage Rating | 277@(CSA/UL) |
| Maximum Current Rating | 20@28VDC |
| Maximum DC Voltage Rating | 250 |
| Switch Configuration | ON ON |
| Minimum Operating Temperature | -40 |
| Product Height | 63.6 |
| Terminal Type | Screw |
| Contact Material | Silver Cadmium Oxide |
| Comment | Switches are capable of withstanding a temperature of 160 degrees F continuously |
| CircuitryOperating action | 129620 |
| Lever Type | Standard |
| Series Name | NT |
| AmpereVoltage Range (Resistive Load) | 0.5 A to 15 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.5 A to 20 A at 0.5 Vdc to |
| UNSPSC Commodity | 30211908 Toggle switches |
| Circuitry | 4PDT |
| UNSPSC Code | 30211908 |
| Termination | Screw |
| ULCSA Rating Code | L191: 15 A-125, 250, 277 Vac; 1/2 Hp-125 Vac; 1 Hp-250, 277 Vac; 5 A-120 Vac "L" |
| Circuit | 4PDT |
| Current Rating | 15A (AC) |
| Panel Cutout Dimensions | Circular - 12.40mm Dia |
| Mounting Type | Panel Mount |
| Voltage Rating - AC | 125V |
| Packaging | Bulk |
| Operating Temperature | -40°C ~ 71°C |
| Actuator Type | Standard Round |
| Standard Package | 1 |
| Ingress Protection | IP67/68 - Dust Tight, Waterproof |
| Bushing Thread | 15/32-32 |
| Actuator Length | 17.27mm |
| Features | Sealed |
| rohs | Lead free / RoHS Compliant |
| Voltage Rating AC | 277 V |
| Terminal Seal | Sealed |
| Mounting Hole Diameter | 12.4 mm |
| Voltage Rating DC | 250 V |
| Mounting Hole | Round |
| ActuatorType | Bat |
| MountingType | Panel |
| Type | Toggle |
| Product Type | MICRO SWITCHa?￠ Toggle Switch |
| Ampere/Voltage Range (Resistive Load) | 0.5 A to 15 A at 0.5 Vac to 277 Vac|0.5 A at 250 Vdc|0.5 A to 20 A at 0.5 Vdc to 28 Vdc|0.75 A at 115 Vdc |
| Action | 2 position |
| Circuitry/Operating action | Bushing 15/32 in |
| UL/CSA | Switches are capable of withstanding a temperature of 160 degrees F continuously at full rated load |
| 系列 | NT |
| 端接樣式 | Screw Terminal |
| 襯套螺紋 | 15/32-32 |
| 致動器長度 | 17.27mm |
| 開關功能 | On-On |
| 額定電壓 - 交流 | 125V |
| 電路 | 4PDT |
| 額定電流 | 15A (AC) |
| 裝配類型 | Panel Mount |
| 照明 | Non-Illuminated |
| 致動器類型 | Standard Round |
| 面板開口尺寸 | Circular - 12.40mm Dia |
