5-104652-6
Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube
廠商型號:
5-104652-6
芯天下內部編號:
35-5-104652-6
生產廠商:
te connectivity / amp
描述:
Conn Socket Strip RCP 60 POS 1.27mm Solder ST SMD Tube
產品類別:
Interconnect|Connector Headers and PCB Receptacles
客戶編號:
規格書:
查看PDF

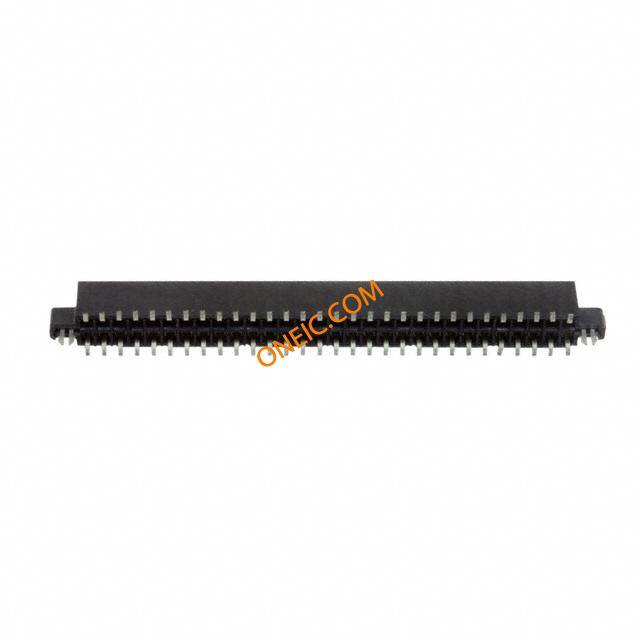

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Type | Socket Strip |
| Pitch | 1.27 mm |
| Number of Rows | 2 |
| Number of Contacts | 60 |
| Gender | RCP |
| Contact Plating | Gold Over Nickel |
| Termination Method | Solder |
| Standard Package | Rail / Tube |
| Features | Board Lock |
| Mounting Type | Surface Mount |
| Color | Black |
| Height Stacking (Mating) | 0.250", 0.320", 0.390" (6.35mm, 8.13mm, 9.91mm) |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Packaging | Tube |
| Height Above Board | 0.187" (4.75mm) |
| Termination | Solder |
| Contact Finish Thickness | 30μin (0.76μm) |
| Row Spacing | 0.050" (1.27mm) |
| Number of Positions | 60 |
| Number of Positions Loaded | All |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 12 |
| Mounting Angle | Vertical |
| Product Category | Board to Board & Mezzanine Connectors |
| Current Rating | 1 A to 4 A |
| Voltage Rating | 30 V |
| Series | AMPMODU 50/50 GRID |
| Termination Style | Through Hole |
| Housing Material | Thermoplastic |
| Number of Positions / Contacts | 60 |
| Tradename | AMPMODU |
| Product Type | Receptacles |
| RoHS | RoHS Compliant |
| Contact Material | Copper Alloy |
| 連接器類型 | 連接器組件 |
| Centerline (Pitch) | 1.27?mm?[?.05?in?] |
| 適用于 | 母端組件 |
| 輪轂 | 不帶 |
| 端子類型 | 插座 |
| Pick and Place Cover | Without |
| 封裝數量 | 12 |
| 封裝方法 | 盒和管, 管 |
| 絕緣電阻?(MΩ) | 5000 |
| 端子基材 | 銅合金 |
| 行數 | 2 |
| PC 板端接方法 | 表面貼裝 |
| Contact Current Rating (Max)?(A) | 4 |
| UL 易燃性等級 | UL 94V-0 |
| 接合對準 | 帶有 |
| 高度 | 4.75?mm?[?.187?in?] |
| 端子接觸部電鍍材料 | 金 |
| 殼體顏色 | 黑色 |
| 端子接觸部電鍍厚度 | .762?μm?[?30?μin?] |
| 產品類型 | 連接器 |
| 接合對準類型 | 極化公端 |
| 電壓?(VAC) | 30 |
| 焊尾端子電鍍厚度?(μin) | 150 |
| PCB 安裝固定 | 帶有 |
| Assembly Process Feature | Board Standoff |
| Hold-Down Post Plating Thickness | Tin: 150- Nickel: 50 |
| PCB 安裝方向 | 垂直 |
| Hold-Down Post Material | Copper Alloy |
| 外殼材料 | LCP |
| Underplate Material | Nickel |
| 焊尾端子電鍍材料 | 鎳打底鍍錫 |
| PCB 安裝固定類型 | 壓具柱體 |
| 連接器種類 | 母端 |
| Hold-Down Post Plating Material | Tin over Nickel |
| 行間距 | 1.27?mm?[?.05?in?] |
| 連接器和端子端接到 | 印刷電路板 |
| 工組溫度范圍?(°C) | -65 – 105 |
| 已批準的標準 | CSA LR7189, UL E28476 |
| Mating Connector Lock | Without |
