501912-2190
CONN FPC .3MM 21POS R/A SMD
廠商型號:
501912-2190
芯天下內部編號:
256-501912-2190
生產廠商:
Molex Connector Corporation
描述:
CONN FPC .3MM 21POS R/A SMD
產品類別:
Connectors|FFC / FPC|FFC & FPC Connectors
客戶編號:
規格書:
查看PDF

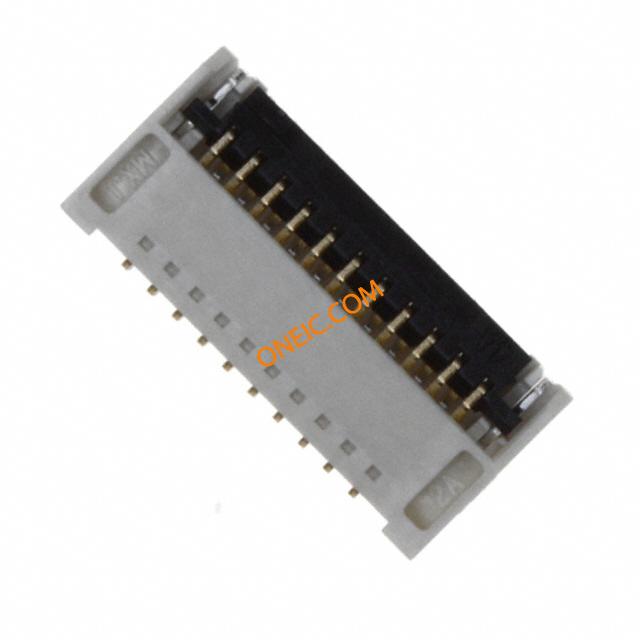

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。
庫存與訂購
產品參數
| 參數類型 | 參數值 |
|---|---|
| Packaging | Bulk |
| Locking Feature | Flip Lock |
| Current Rating | 0.200A |
| Features | Solder Retention |
| Mounting Type | Surface Mount, Right Angle |
| Voltage Rating | 50V |
| Pitch | 0.012" (0.30mm) |
| FFC, FCB Thickness | 0.20mm |
| Connector Type | Bottom Contacts |
| Contact Finish | Gold |
| Housing Material | Polymer, Glass Filled |
| Operating Temperature | -20°C ~ 85°C |
| Standard Package | 100 |
| Termination | Solder |
| Number of Positions | 21 |
| Cable End Type | Tapered |
| rohs | Lead free / RoHS Compliant |
| Factory Pack Quantity | 3000 |
| Mounting Angle | Right |
| Product Category | FFC & FPC Connectors |
| Contact Plating | Gold |
| Contact Location | Bottom Contact |
| Series | 501912 |
| Termination Style | SMD |
| Number of Positions / Contacts | 21 |
| Tradename | Easy-On |
| Product Type | Board Mount |
| RoHS | RoHS Compliant |
| Contact Material | Phosphor Bronze |
| 間距 | 0.012" (0.30mm) |
| 系列 | Easy-On? 501912 |
| 鎖定功能 | Flip Lock |
| 位置數 | 21 |
| 端接 | Solder |
| 電纜端類型 | Tapered |
| 特性 | Solder Retention |
| 觸頭鍍層 | Gold |
| 裝配類型 | Surface Mount, Right Angle |
| FFC，F(xiàn)CB 厚度 | 0.20mm |
