52601-S10-8LF

Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD Tray

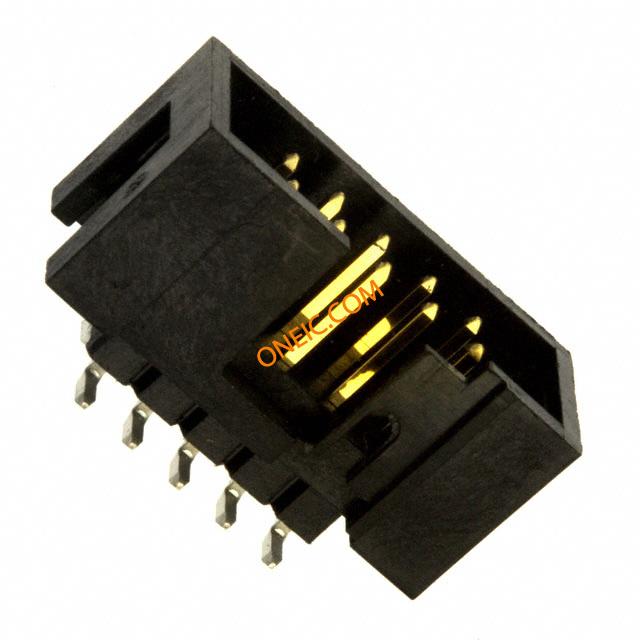

Thumbnail 52601-S10-8LF Thumbnail 52601-S10-8LF Thumbnail 52601-S10-8LF Thumbnail 52601-S10-8LF
廠商型號: 52601-S10-8LF
芯天下內部編號: 137-52601-S10-8LF
生產廠商:
fci sa fci sa
描述: Conn Shrouded Header HDR 10 POS 2.54mm Solder ST SMD Tray
產品類別: Interconnect|Connector Headers and PCB Receptacles
客戶編號:
規格書: 查看PDF
瀏覽次數: 2

所示圖像僅為示意圖。請從產品數據表中獲得準確的規格。

庫存與訂購

庫存: 0
庫存獲取中，請稍候....

產品參數

參數類型 參數值
Type Shrouded Header
Pitch 2.54 mm
Number of Rows 2
Number of Contacts 10
Gender HDR
Contact Plating Gold Over Nickel
Termination Method Solder
Standard Package Trays
Packaging Tray
Product Length 20.06
EU RoHS Compliant
Product Depth 8.76
Mounting Surface Mount
Body Orientation Straight
Maximum Voltage Rating 500VAC
Product Height 12.78
Housing Material Thermoplastic
Pitch 2.54
Housing Color Black
Maximum Current Rating 3/Contact
Contact Material Phosphor Bronze
Unit Pack 1040
MOQ 1040
Contact Mating Length 0.230" (5.84mm)
Mounting Type Surface Mount
Color Black
Connector Type Header, Shrouded
Contact Finish Gold or Gold, GXT?
Contact Type Male Pin
Termination Solder
Contact Finish Thickness 15μin (0.38μm)
Row Spacing 0.100" (2.54mm)
Number of Positions 10
Number of Positions Loaded All
rohs Lead free / RoHS Compliant
Factory Pack Quantity 1020
Current Rating 3 A
Termination Style SMD
Insulation Resistance 10000 MOhms
Product Category Headers & Wire Housings
Mating Post Length 5.84 mm
Operating Temperature Range - 65 C to + 125 C
Number of Positions / Contacts 10
Product Type Headers
Voltage Rating 500 V
Contact Gender Pin (Male)
RoHS RoHS Compliant
Mounting Angle Vertical
Series Quickie
Product Range :FCI - Quickie Series
Contact Termination :Surface Mount Vertical
No. of Contacts :10
No. of Rows :2
Pitch Spacing :2.54mm
Weight (kg) 0.002
Tariff No. 85381000
